Standard Grow Tent User Manual

  • VST-GTS3018

  • VST-GTS224

  • VST-GTS236

  • VST-GTS336

  • VST-GTS346

  • VST-GTS425

  • VST-GTS426

  • VST-GTS448

  • VST-GTS528

  • VST-GTS558

  • VST-GTS848

  • VST-GTS888

  • VST-GTS105

  • VST-GTS108

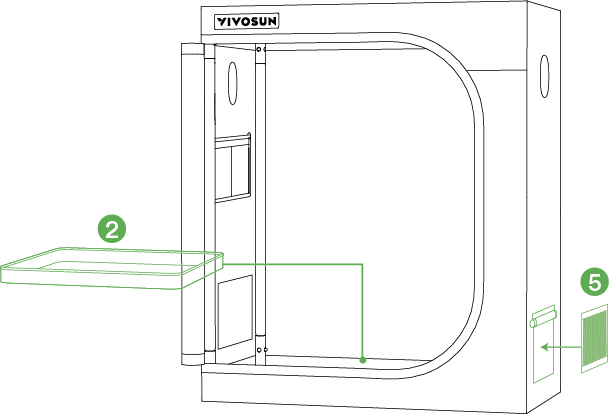

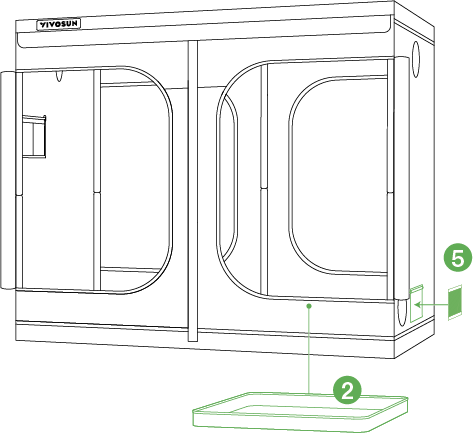

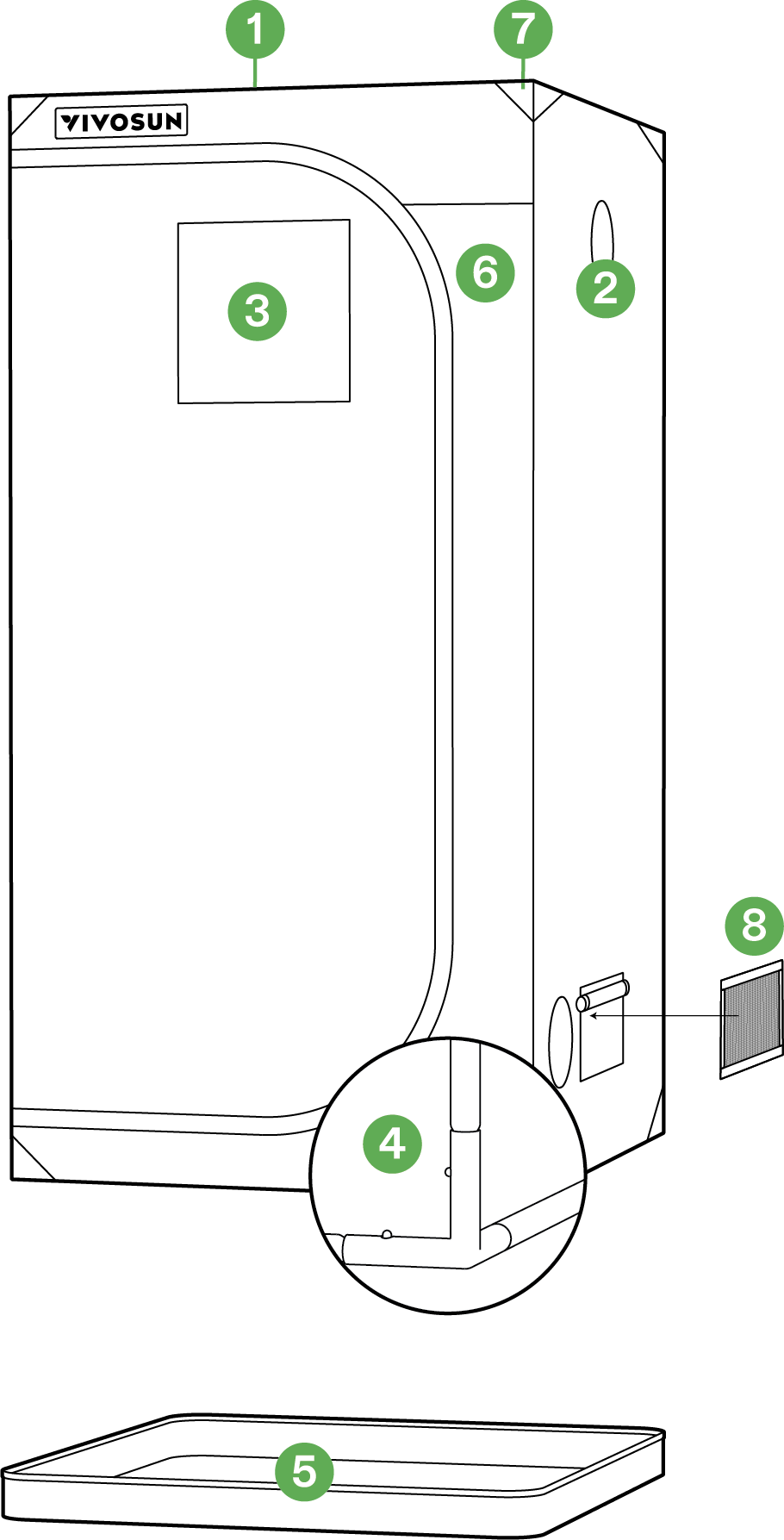

KEY FEATURES

3612b34033eb9c7934c2da28769176ea

1. Light-Blocking & Highly Reflective Tent Coat: Professional tent coat design with 1680D Oxford Nylon exterior and highly reflective Mylar interior.

2. Ducting Openings: Multiple ducting openings with adjustable size suitable for different sizes of ductings with no leak of light.

3. Viewing Window: A large transparent window with an optional flap cover offers a clear view of the interior of the tent.

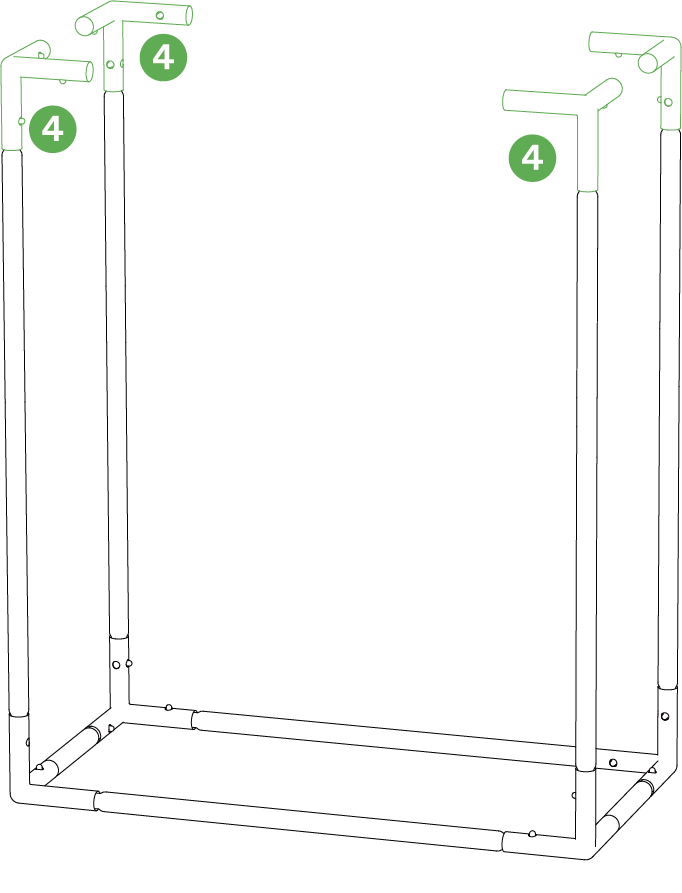

4. Heavy-Duty Frame: Thick metal poles and connectors provide a sturdy structure.

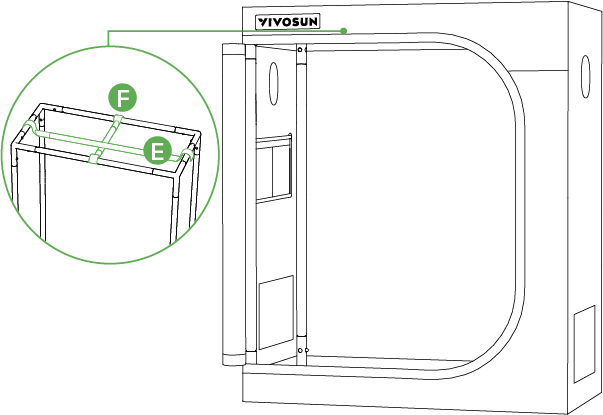

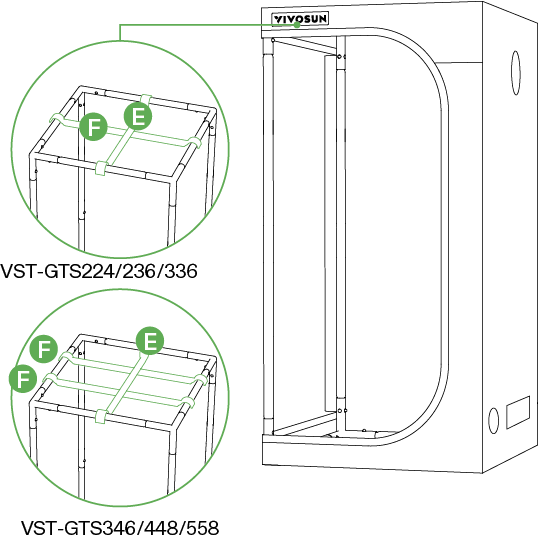

Note: All devices must be evenly distributed on the ceilling bars.

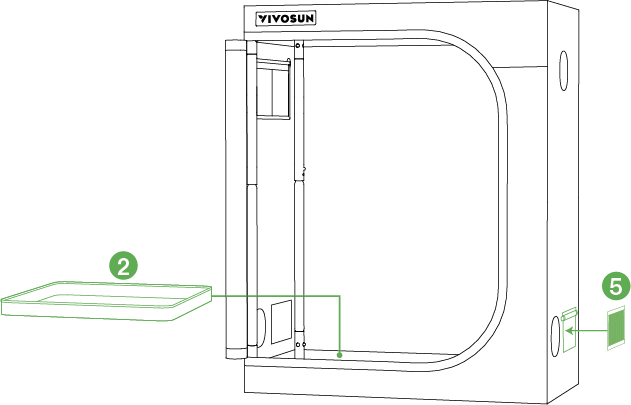

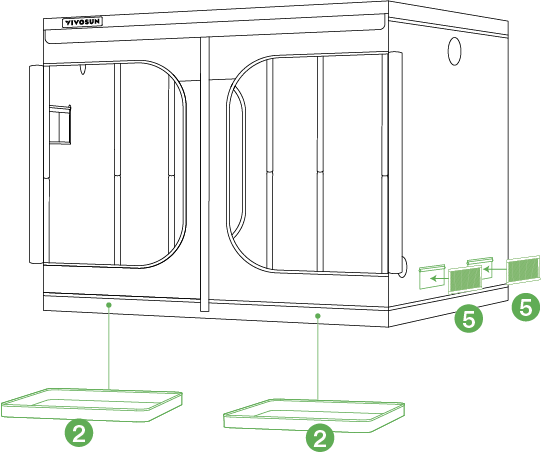

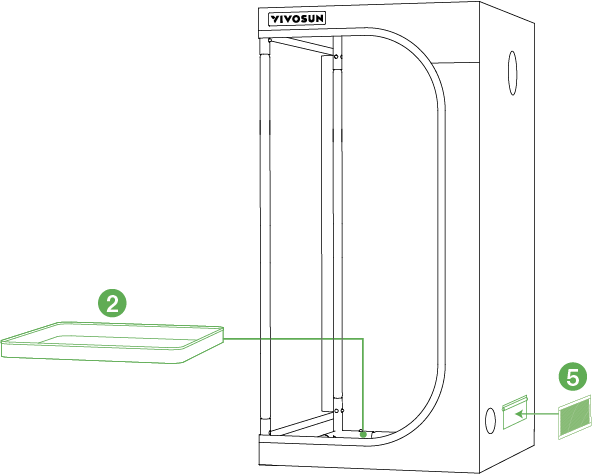

5. Waterproof Floor Tray: The tray can hold water, soil and other debris, preventing leakage.

6. Wire Opening: Double-covered wire opening for more convenient connection to the external controller.

7. Triangular Plate: Triangle stiffener increases tent strength.

8. Air Vent: The vent screen is removable for easy cleaning.

PRODUCT CONTENTS

  • VST-GTS3018

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

b739798c21a6b9dfe40bd67d4fecaf32

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

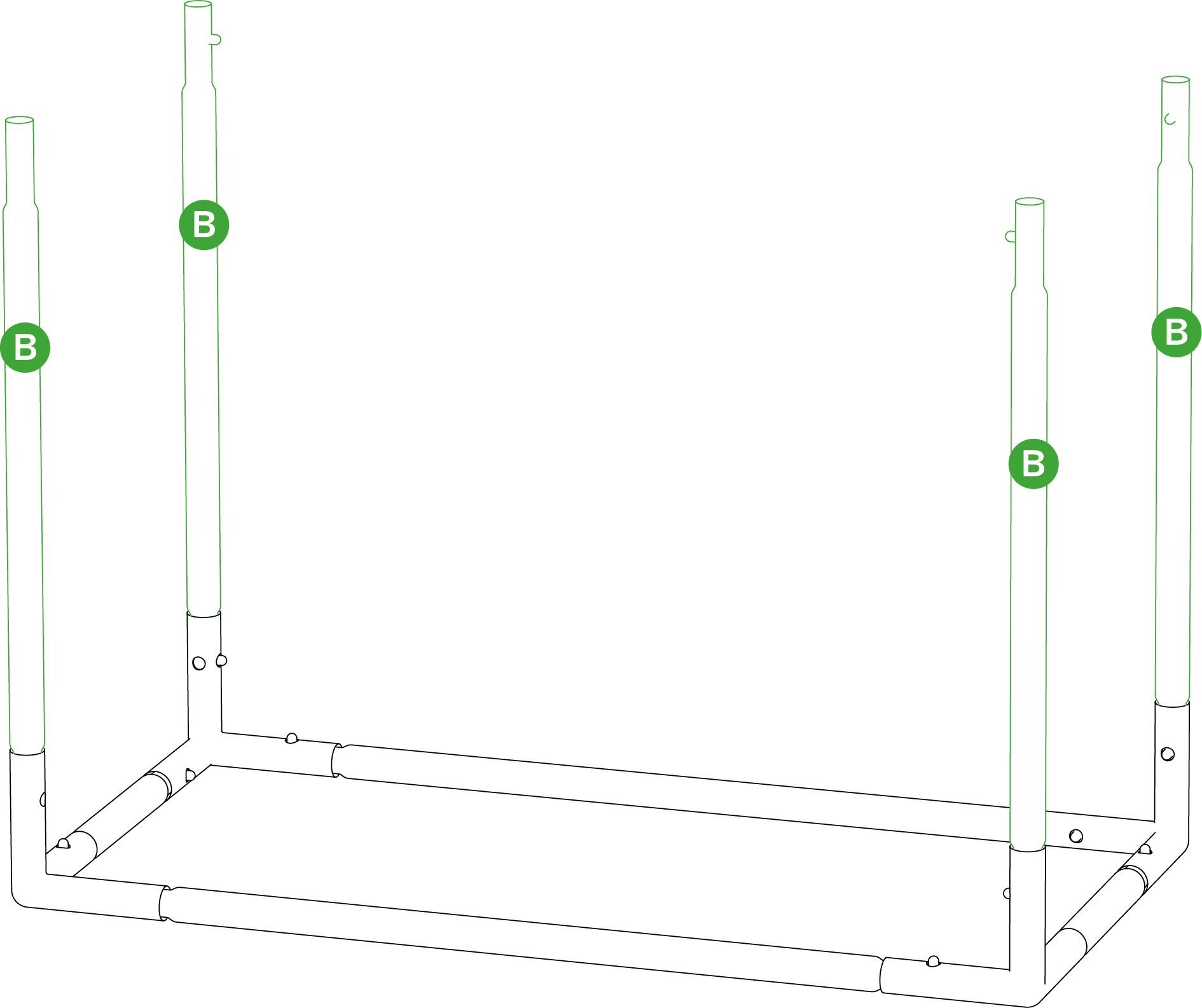

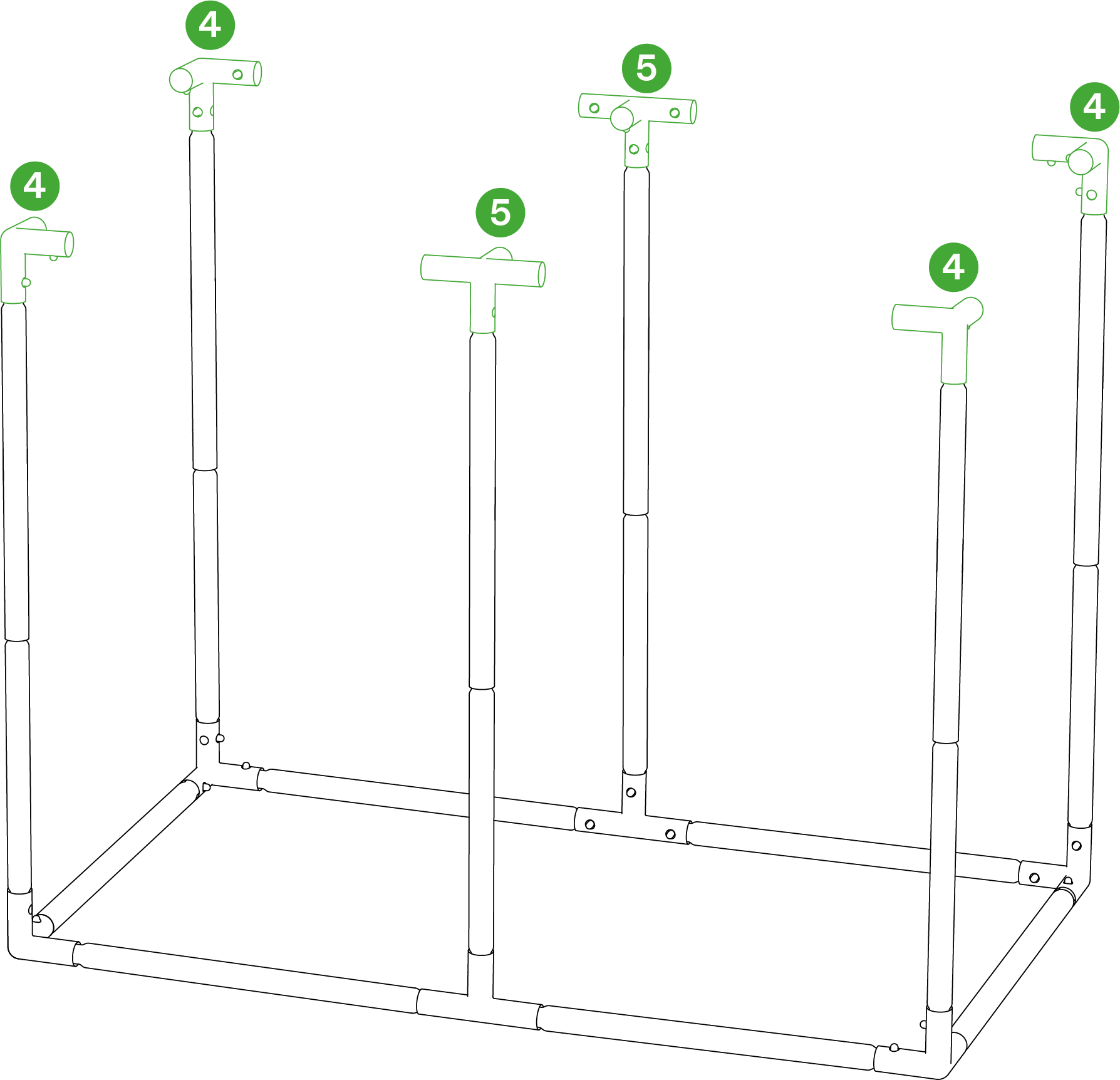

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

2e5b3b3437f5abd0d4318f6e6aa3e061

4 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

70365fbc2b568547df3d436846e51f53

4 pcs

16mm

77449d473a6807e9db096a107f377c06

a0f8230b94928f91186b67895da3e2fb

4 pcs

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

db27a7ce70a52ffc5daedfaad4bb971a

1 pc

16mm

233c193be38c2040f13111bd7f404150

689ee9e6a02bda43afd8f84885da0fdd

1 pc

16mm

  • VST-GTS224/236

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

e6832c1418c4f41c5928890643d7f18c

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

1fa411eb4f3f54ef5723f4d654d10d52

8 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

68d63ceca26290a0ad2d6effe6e974ae

4 pcs

16mm

c9802e72058bcb9dac24cfb92a121739

46323a98d0aefa256f94ba69cd79ed4b

4 pcs

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

aa0d65e6b7da00739b3e7992704cad82

1 pc

16mm

233c193be38c2040f13111bd7f404150

5095444af7a97bcd617ad4cdfbabd4a8

1 pc

16mm

  • VST-GTS336

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

e6832c1418c4f41c5928890643d7f18c

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

1fa411eb4f3f54ef5723f4d654d10d52

8 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

68d63ceca26290a0ad2d6effe6e974ae

4 pcs

16mm

c9802e72058bcb9dac24cfb92a121739

46323a98d0aefa256f94ba69cd79ed4b

4 pcs

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

aa0d65e6b7da00739b3e7992704cad82

1 pc

19mm

233c193be38c2040f13111bd7f404150

5095444af7a97bcd617ad4cdfbabd4a8

1 pc

19mm

  • VST-GTS425/426/528

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

8f389f9065ba294189b5b81e9126bd06

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

89f1df39430b5eabba5426cf3f3eac31

4 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

37795d8624825695c597e7be57e5824c

4 pcs

16mm

c9802e72058bcb9dac24cfb92a121739

1594e10eae02ccdc88a12cf2c1560986

4 pcs

16mm

77449d473a6807e9db096a107f377c06

8c9b3998c4cc304e361b37f36edc8998

4 pc

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

736f6fa7b7a84b1de5b03cd2d545011e

1 pc

19mm

233c193be38c2040f13111bd7f404150

2fefca8865ddd11b018c60bda70ae9eb

1 pc

19mm

  • VST-GTS346/448

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

e6832c1418c4f41c5928890643d7f18c

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

75452a7e3e25b2c8b51a561934866bb7

8 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

ec15fc6241b05c3e700a7f67a2131ef7

4 pcs

16mm

c9802e72058bcb9dac24cfb92a121739

7120e09b76db925da94f737e2036b338

4 pcs

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

d3f4bdec2fe75eb4e68a265c4783b8f7

1 pc

19mm

233c193be38c2040f13111bd7f404150

7e2d1d98256a98b22446bcaf14b7e079

2 pc

19mm

  • VST-GTS558

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

e83fda1dd41613d968084e8f2a6e6d18

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

e6832c1418c4f41c5928890643d7f18c

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

5a67007c732fce9906bfc57d5bc53917

2 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

16f09997b0f3aa81cafebea126e96e6c

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Air vent

87fd4044ed3ed81cab4420e16c4a6c38

2 pcs

Frame Poles & Ceiling Bars

236461fb38ec0740a4cb5d94259f75bc

ec15fc6241b05c3e700a7f67a2131ef7

4 pcs

19mm

c9802e72058bcb9dac24cfb92a121739

7120e09b76db925da94f737e2036b338

4 pcs

19mm

57cdd0bf0f26e7ac9946913d820ee0cd

d3f4bdec2fe75eb4e68a265c4783b8f7

1 pc

19mm

233c193be38c2040f13111bd7f404150

7e2d1d98256a98b22446bcaf14b7e079

2 pc

19mm

  • VST-GTS848

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

bfed963c0e3e6bfb4081c02c64cb130e

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

0547bcdd7554e2fb2c1a49f5f284213f

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

628c28860587109e6a219b5391b8f54b

4 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

6c7da7d99ca61ddfc136ec02f02cad16

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Corner Supports

c318ce7a82214a3fb817304795d23764

2 pcs

eccc01f25f9ec5dc2800cd8d07c20cd9

Corner Supports

27e1931e34ab1934495c56dec01e968c

2 pcs

4f55178310333358c9a954964ed9fbe7

Air vent

cd0813cc8248d1e65d819b322ff6011c

4 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

a5bf1c37be07460c9a63ac732c35933a

13 pcs

16mm

236461fb38ec0740a4cb5d94259f75bc

aaee8ce075e44781b084f98d9b99783f

6 pcs

16mm

c9802e72058bcb9dac24cfb92a121739

b9ef61184781bcc6a0945774d4ce97de

6 pcs

16mm

57cdd0bf0f26e7ac9946913d820ee0cd

d9521334aa00d10b0f56633fb399a943

2 pc

19mm

233c193be38c2040f13111bd7f404150

86e1b37fac19dcc4aa09c8a4729af401

4 pc

19mm

  • VST-GTS105

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

bfed963c0e3e6bfb4081c02c64cb130e

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

0547bcdd7554e2fb2c1a49f5f284213f

1 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

628c28860587109e6a219b5391b8f54b

4 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

6c7da7d99ca61ddfc136ec02f02cad16

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Corner Supports

c318ce7a82214a3fb817304795d23764

2 pcs

eccc01f25f9ec5dc2800cd8d07c20cd9

Corner Supports

27e1931e34ab1934495c56dec01e968c

2 pcs

4f55178310333358c9a954964ed9fbe7

Air vent

cd0813cc8248d1e65d819b322ff6011c

4 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

a5bf1c37be07460c9a63ac732c35933a

13 pcs

19mm

236461fb38ec0740a4cb5d94259f75bc

aaee8ce075e44781b084f98d9b99783f

6 pcs

19mm

c9802e72058bcb9dac24cfb92a121739

b9ef61184781bcc6a0945774d4ce97de

6 pcs

19mm

57cdd0bf0f26e7ac9946913d820ee0cd

d9521334aa00d10b0f56633fb399a943

2 pc

19mm

233c193be38c2040f13111bd7f404150

86e1b37fac19dcc4aa09c8a4729af401

4 pc

19mm

  • VST-GTS888/108

e44d25ecdec8adc1ddba6e686c82a31d

Tent Coat

bfed963c0e3e6bfb4081c02c64cb130e

1 pc

3fcfd7e91340256ce6c324f642634312

Floor Tray

0547bcdd7554e2fb2c1a49f5f284213f

2 pc

c1606182955db0a50b31aee67351e16e

Filter Straps

628c28860587109e6a219b5391b8f54b

4 pcs

1e0e7b12d0ff856428d26e45fa4d3cc7

Corner Supports

6c7da7d99ca61ddfc136ec02f02cad16

8 pcs

23d484af230d7ab5581b3e81d8cdb4ab

Corner Supports

c318ce7a82214a3fb817304795d23764

6 pcs

eccc01f25f9ec5dc2800cd8d07c20cd9

Corner Supports

27e1931e34ab1934495c56dec01e968c

3 pcs

4f55178310333358c9a954964ed9fbe7

Corner Supports

a1f52c5c38f1aded35b57c80f21d5243

1 pcs

80af7b6be30149909a60570f54e1219c

Air vent

cd0813cc8248d1e65d819b322ff6011c

6 pcs

Frame Poles & Ceiling Bars

395052933647724e218a3c8093fa4524

4adbd04dd59562915c7a4c320af3c025

22 pcs

19mm

236461fb38ec0740a4cb5d94259f75bc

b6280f913b53b53a581819f543c2505a

9 pcs

19mm

c9802e72058bcb9dac24cfb92a121739

885c6c362a436354aa7d1ee9808887b3

9 pcs

19mm

57cdd0bf0f26e7ac9946913d820ee0cd

ab639f2b12bbde97b372a4cbb89cd01b

4 pc

19mm

233c193be38c2040f13111bd7f404150

9abc6bb4f3feef66c5d7d0ec9e5cb37e

8 pc

19mm

SPECIFICATIONS

Dimensions Ducting Opening Air Vents Floor Tray

VST-GTS3018

30"x18"x36"
76x45x90cm

2x4"
3x6"

2

30"x18"
76x45cm

VST-GTS224

24"x24"x48"
60x60x120cm

2x4"
3x6"

2

24"x24"
60x60cm

VST-GTS236

28"x28"x63"
70x70x160cm

2x4"
3x6"

2

28"x28"
70x70cm

VST-GTS336

36"x36"x72"
90x90x180cm

2x4"
6x6"
1x8"

2

36"x36"
90x90cm

VST-GTS346

39"x39"x72"
100x100x180cm

2x4"
6x6"
1x8"

2

39"x39"
100x100cm

VST-GTS425

48"x24"x60"
120x60x150cm

2x4"
6x6"
1x8"

2

48"x24"
120x60cm

VST-GTS426

48"x24"x72"
120x60x180cm

2x4"
6x6"
1x8"

2

48"x24"
120x60cm

VST-GTS448

48"x48"x80"
120x120x200cm

2x4"
2x6"
5x8"

2

48"x48"
120x120cm

VST-GTS528

60"x32"x80"
150x80x200cm

2x4"
2x6"
4x8"
1x10"

2

60"x32"
150x80cm

VST-GTS558

60"x60"x80"
150x150x200cm

2x4"
2x6"
4x8"
1x10"

2

60"x60"
150x150cm

VST-GTS848

96"x48"x80"
240x120x200cm

2x4"
2x6"
4x8"
2x10"

4

96"x48"
240x120cm

VST-GTS888

96"x96"x80"
240x240x200cm

4x4"
2x6"
6x8"
2x10"

6

96"x48"x2
240x120cmx2

VST-GTS105

120"x60"x80"
300x150x200cm

2x4"
2x6"
4x8"
2x10"

4

120"x60"
300x150cm

VST-GTS108

120"x120"x80"
300x300x200cm

4x4"
2x6"
6x8"
2x10"

6

120"x60"x2
300x150cmx2

Installation

VST-S3018

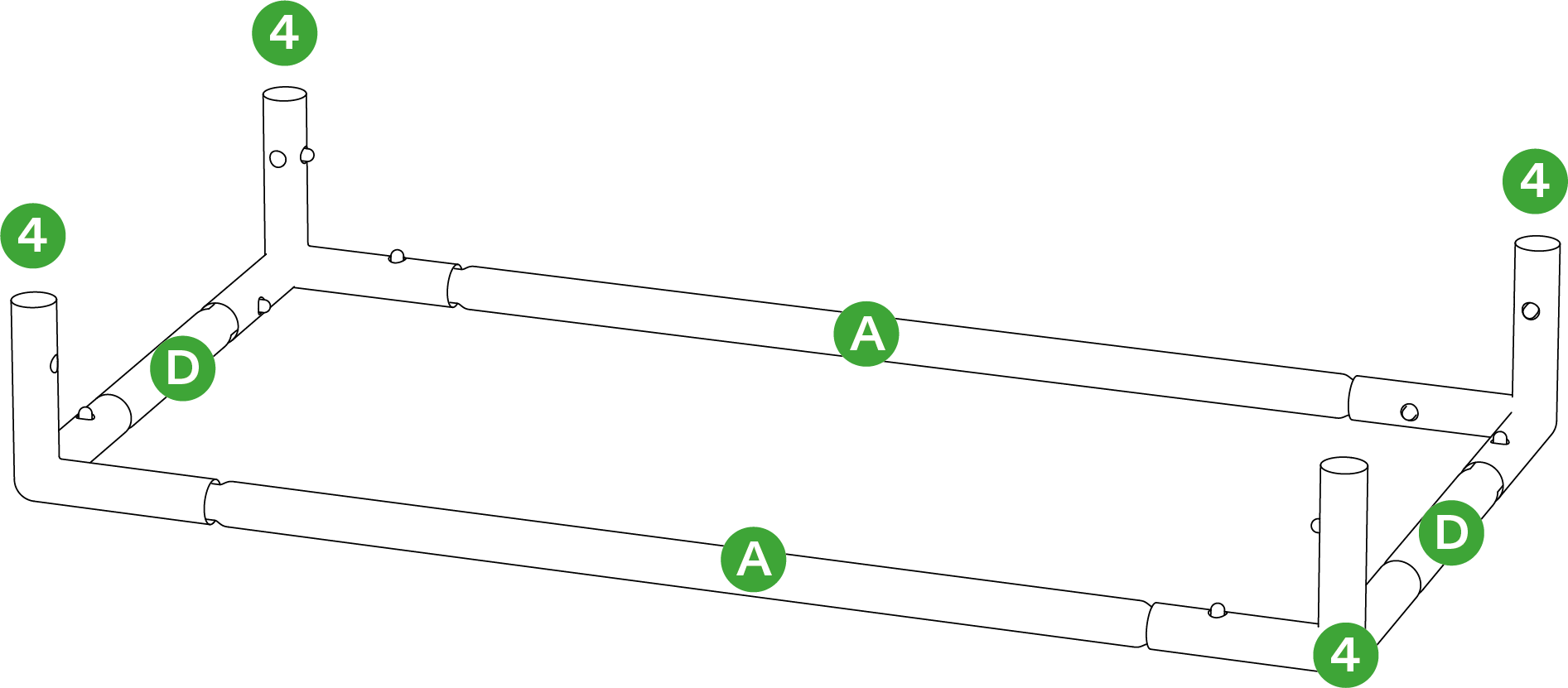

STEP 1

Connect two (A) Poles and two (D) Poles to four Corner Supports (4) to form the base frame of the tent.

5b303105b2ca85071bd6a3ddee2168ae

STEP 2

Connect four (B) Poles to the Corner Supports (4) of the tent base.

eb6970ea424135a9ed21a4a890e78c59

STEP 3

Mount the other four Corner Supports (4) to the (B) Poles as shown.

67ea321b493566e56561bee342ce5cd3

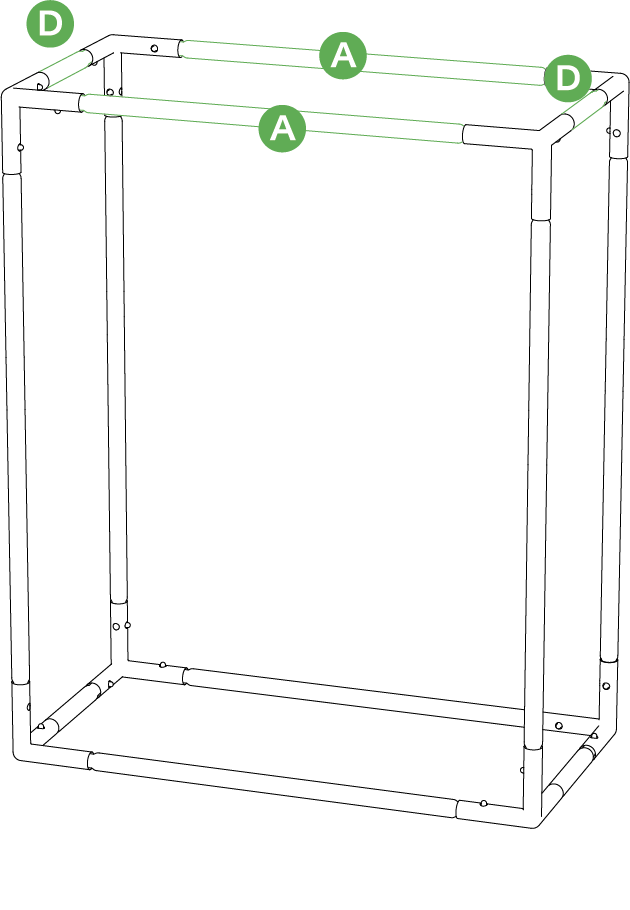

STEP 4

Connect two (A) Poles and two (D) Poles to the Corner Supports (4) to form the top frame of the tent.

4a5651c0552334a43fa6d7d88afffa33

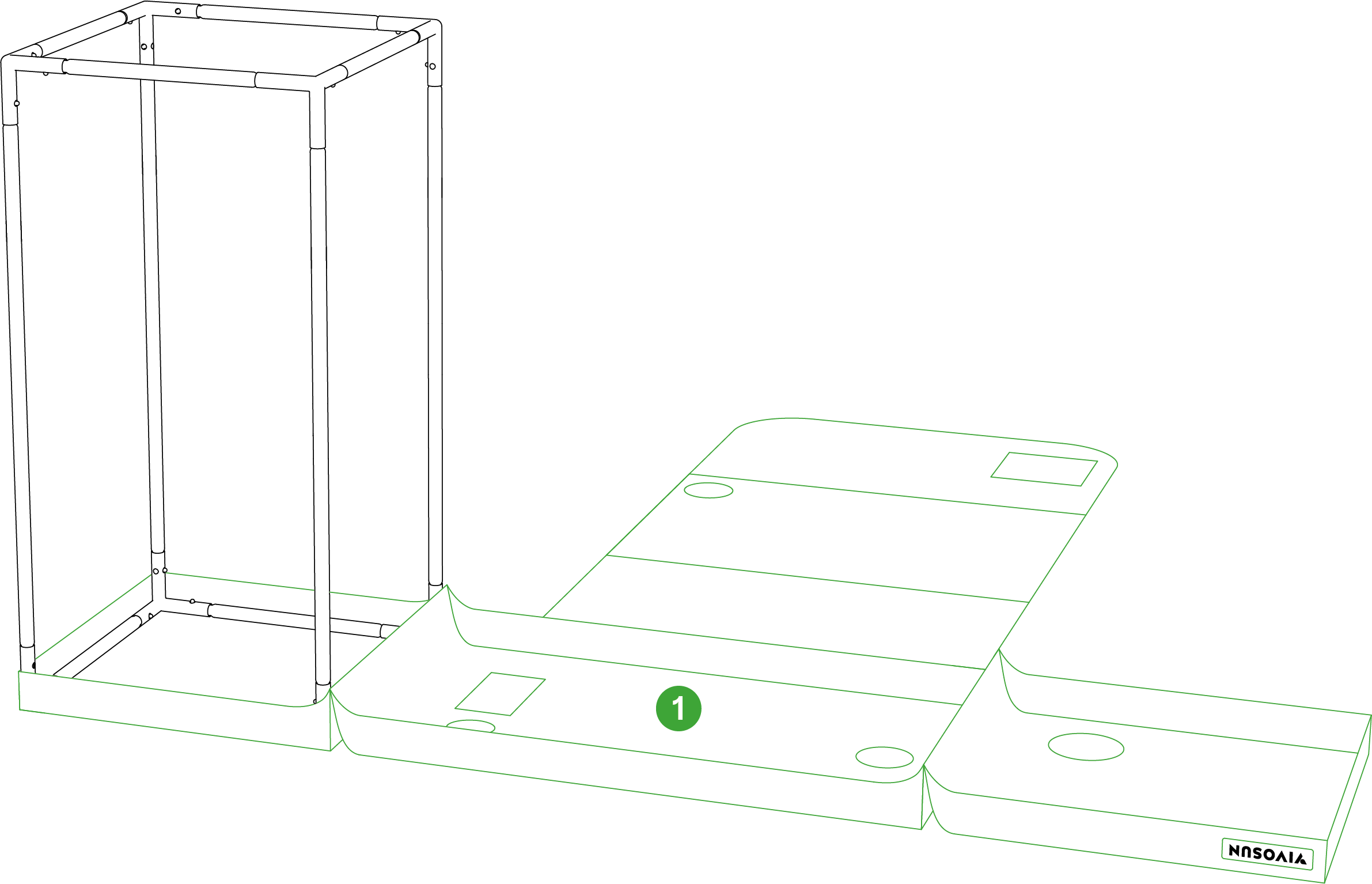

STEP 5

Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .

566a285027894adb46b6ab987853c72f

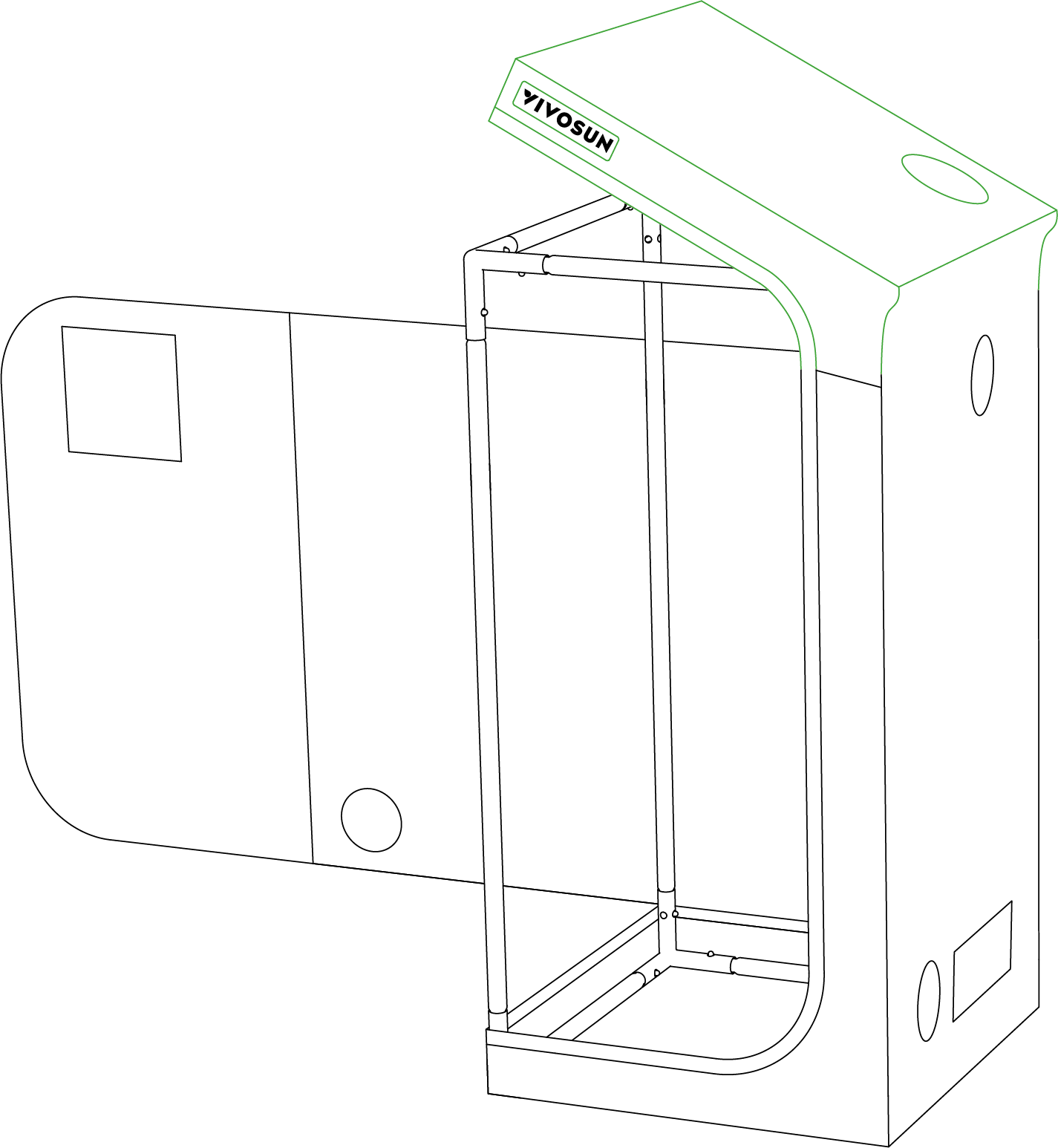

STEP 6

Pull up the tent roof and cover the top of the frame.

262ddc45db1271ce7b1330bfe0533660

STEP 7

Place the Ceiling Bars (E,F) on the top frame for hanging devices like lights and ventilation.

79ca19565828aafab3bfc475c1d770d5

STEP 8

Place the Floor Tray(2) and the Air Vent(5) into the tent.

177f9c9f246430a2a9c5e61e10174ada

STEP 9

Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners.

8cec57edd1d6dbabb8c362338801ab4e

VST-GTS224/236/336/346/448/558

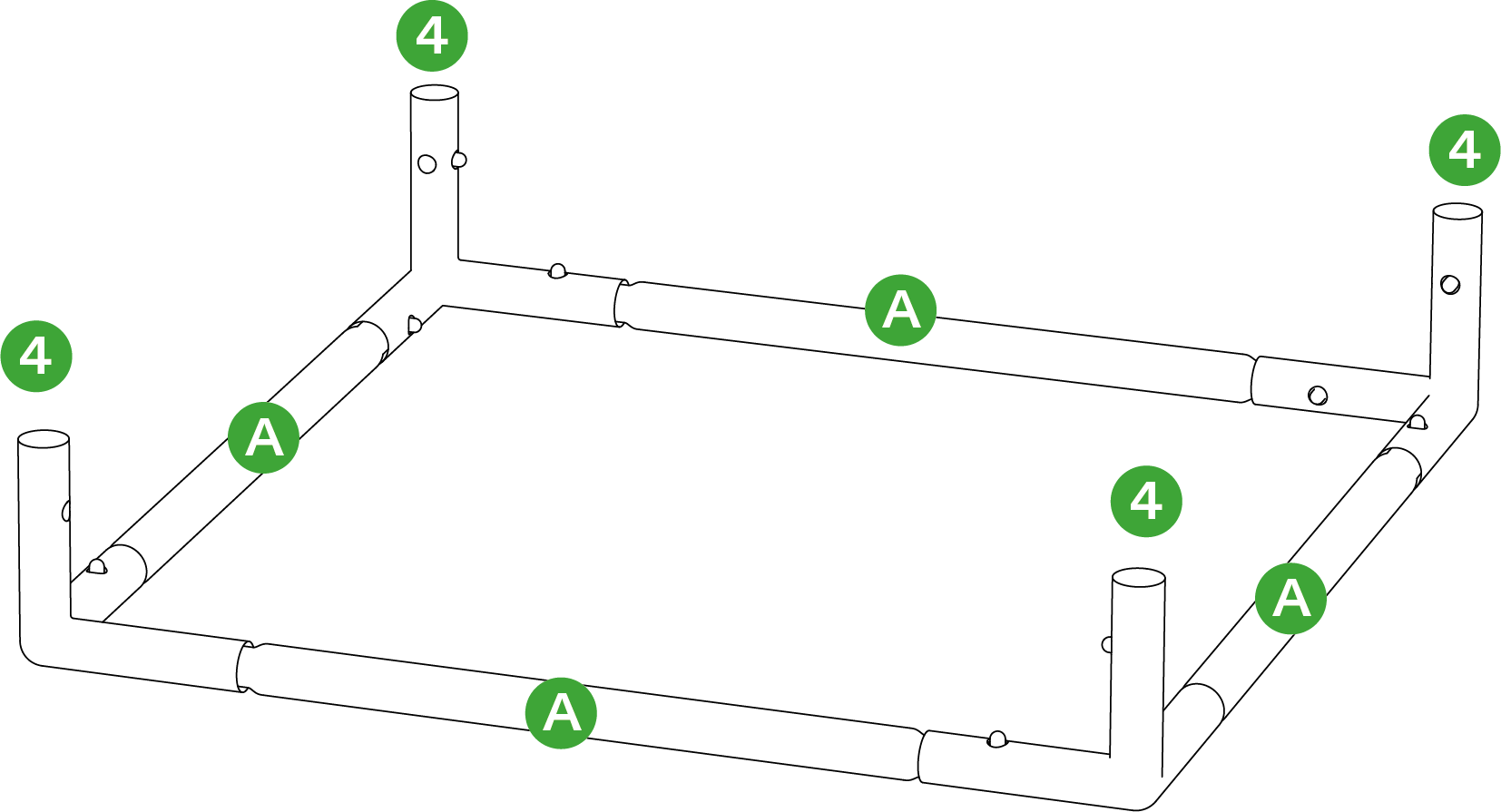

STEP 1

Connect four (A) Poles to four Corner Supports (4) to form the base frame of the tent.

428d875d83a3b7c6aaf09568b1b21bbf

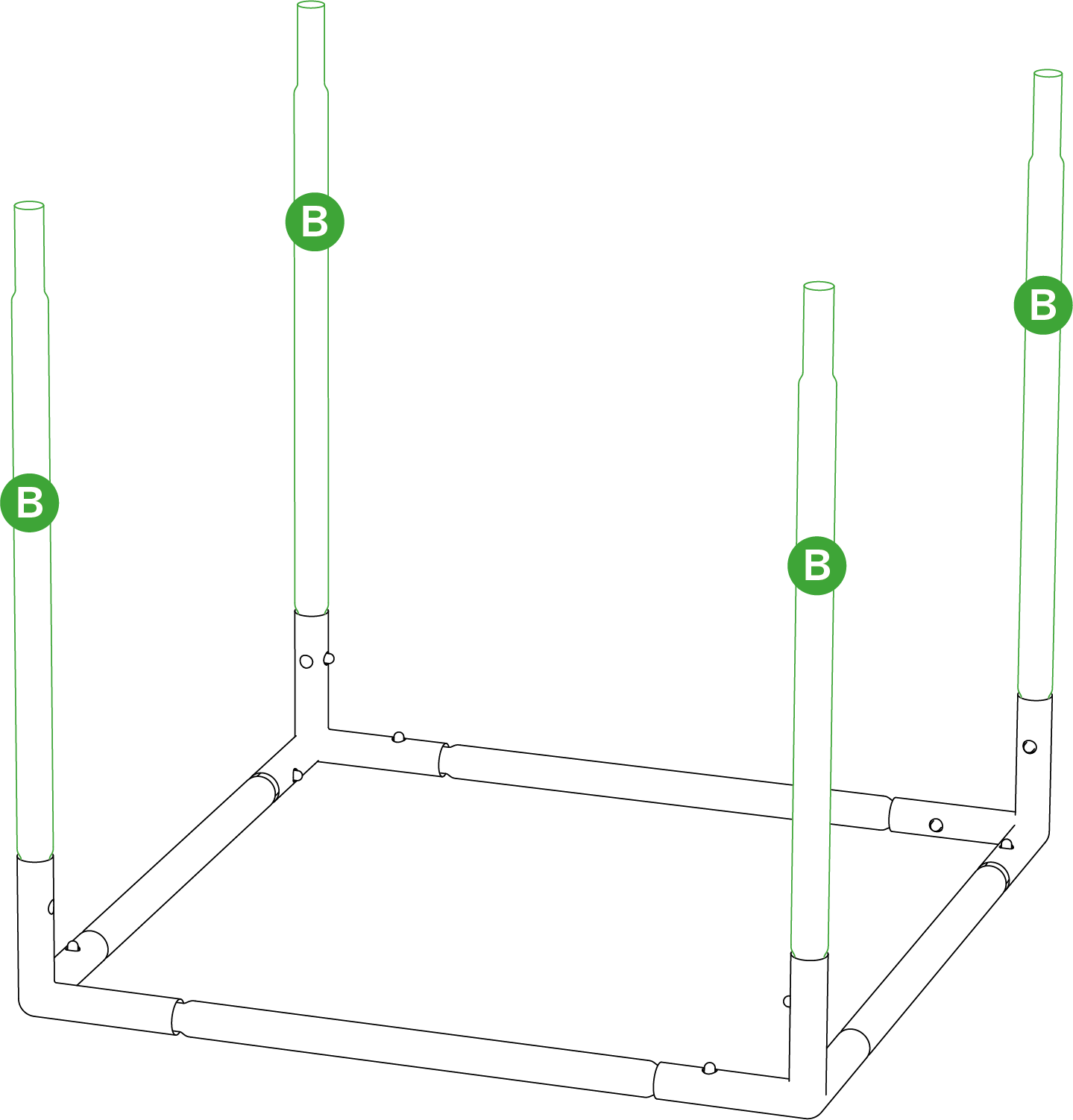

STEP 2

Connect four (B) Poles to the Corner Supports (4) of the tent base.

769ec1ee77e4208ce3aeba01ef95f4bf

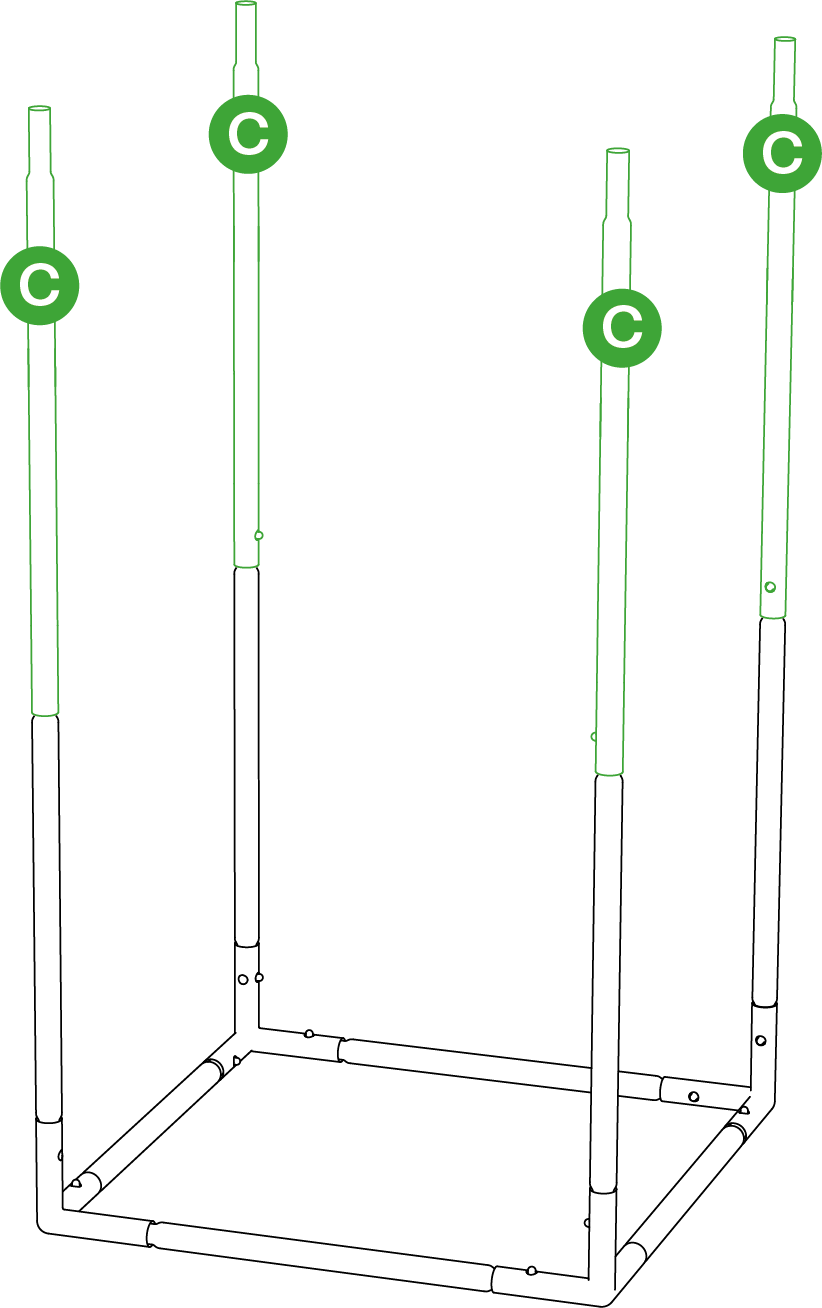

STEP 3

Connect four (C) Poles to the (B) Poles .

765144f9a3d31da3b8cb3faecbc65d25

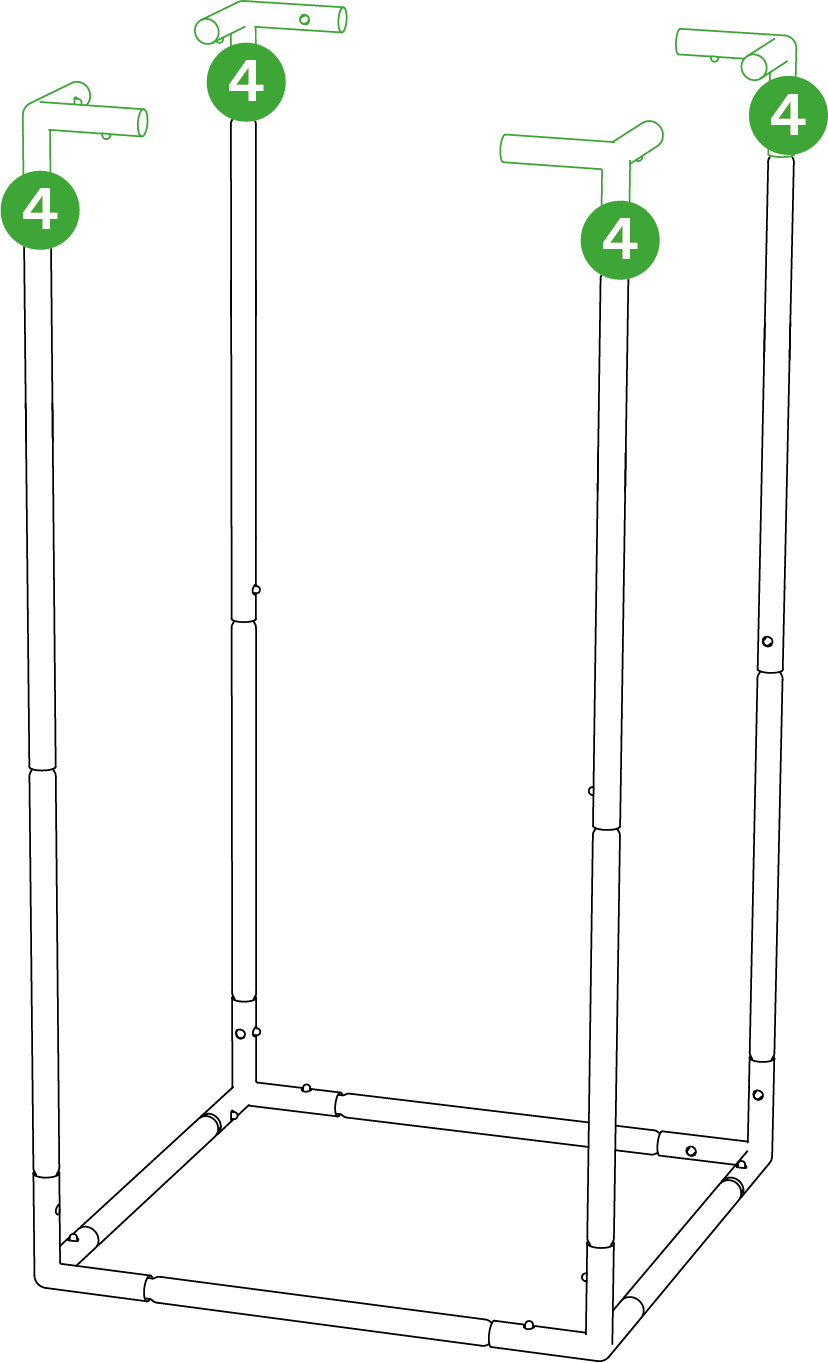

STEP 4

Mount the other four Corner Supports (4) to the (C) Poles as shown.

78fc3c3c14cd6870b26152949567860b

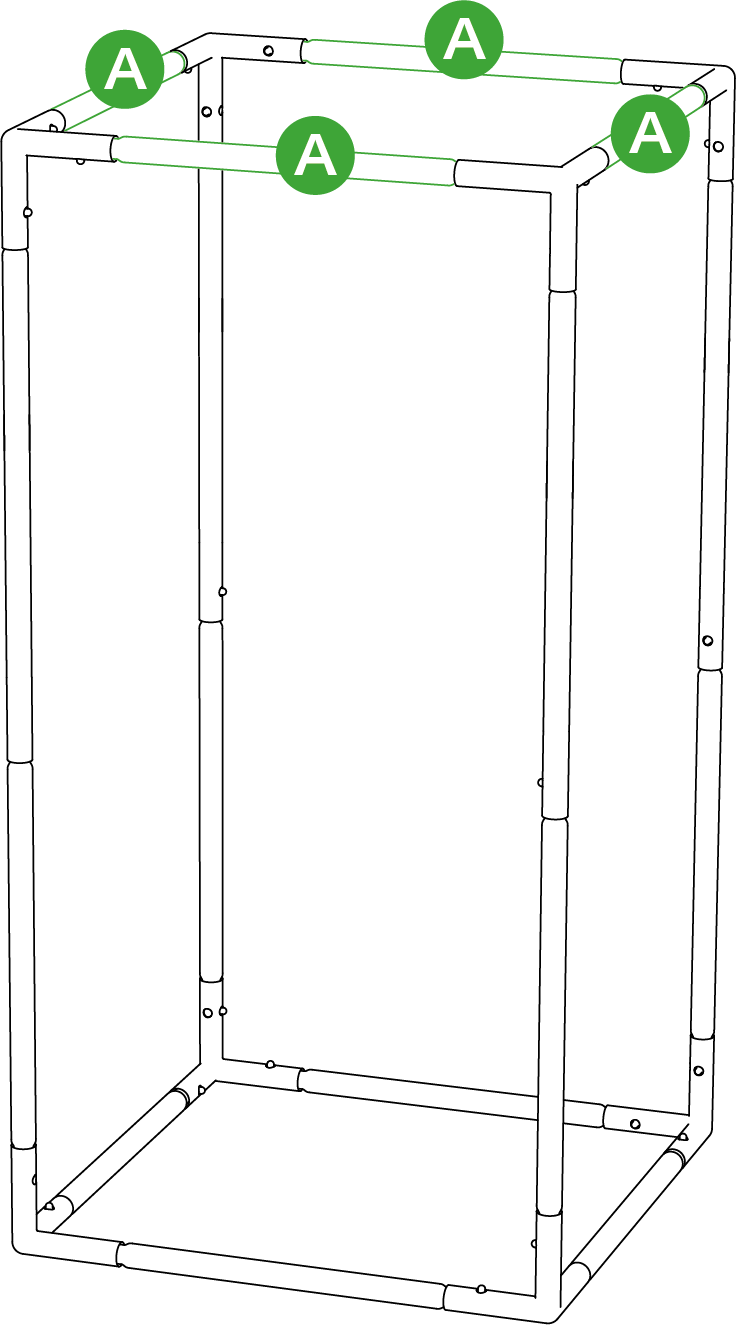

STEP 5

Connect the other four (A) Poles to the Corner Supports (4) to form the top frame of the tent.

2d053b763bc167cc7a326e29fd67700c

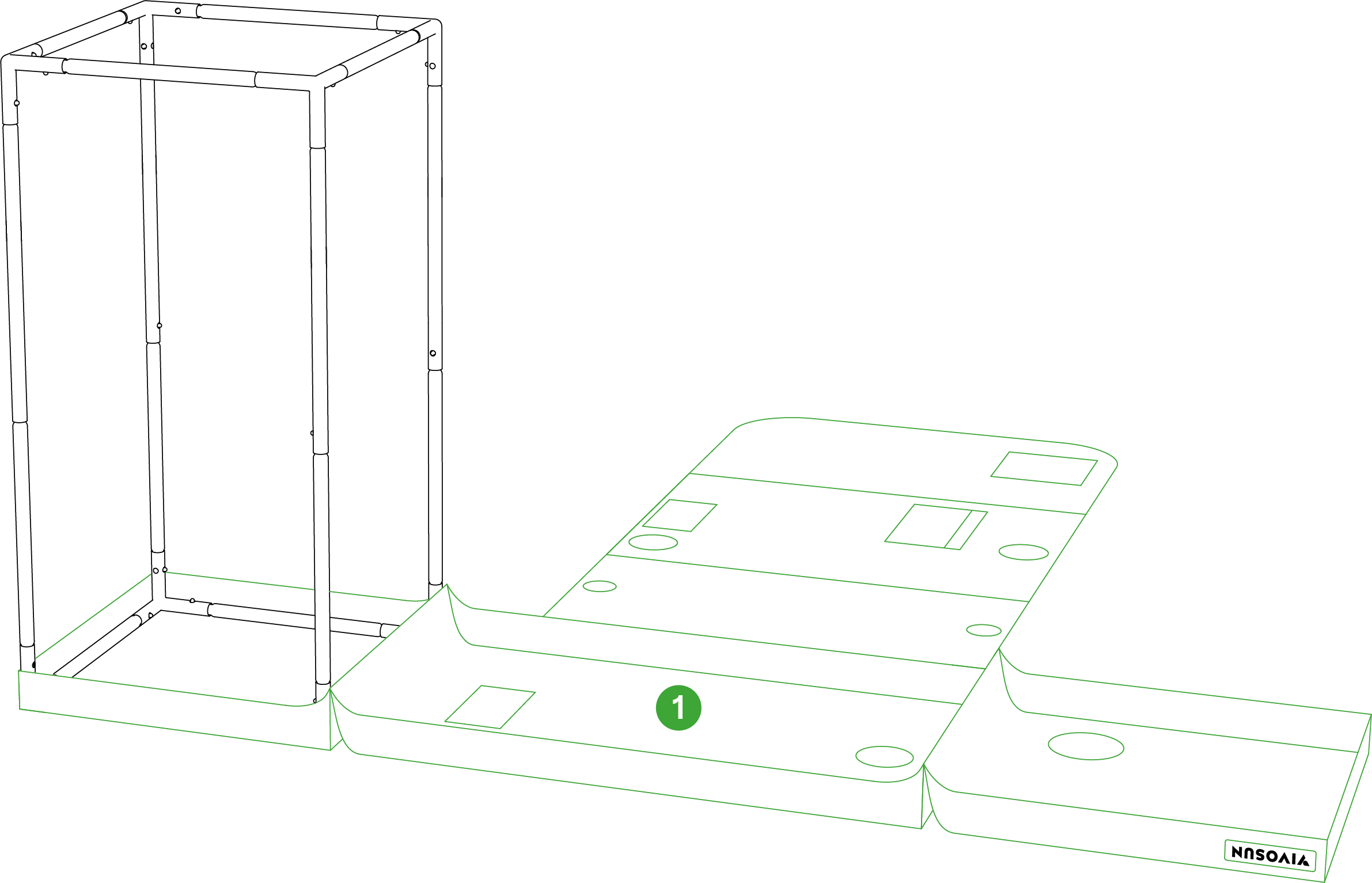

STEP 6

Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .

8b58a5f03068eabd099b79943e96131f

STEP 7

Pull up the tent roof and cover the top of the frame.

262ddc45db1271ce7b1330bfe0533660

STEP 8

Place the Ceiling Bars (E,F) on the top frame for hanging devices like lights and ventilation. For the VST-GTS346/448/558, use two (F) Ceiling Bars and one (E) Ceiling Bar .

a0839e2da38039915c71a0b5c5650949

STEP 9

Place the Floor Tray(2) and the Air Vent(5) into the tent.

175d89bac78418f80f7dbcea29957913

STEP 10

Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners. The VST-GTS336/346/448/558 has additional side doors.

a3d487acc5027f40489ed21146d73ecf

VST-GTS425/426/528

STEP 1

Connect two (A) Poles and two (D) Poles to four Corner Supports (4) to form the base frame of the tent.

5b303105b2ca85071bd6a3ddee2168ae

STEP 2

Connect four (B) Poles to the Corner Supports (4) of the tent base.

eb6970ea424135a9ed21a4a890e78c59

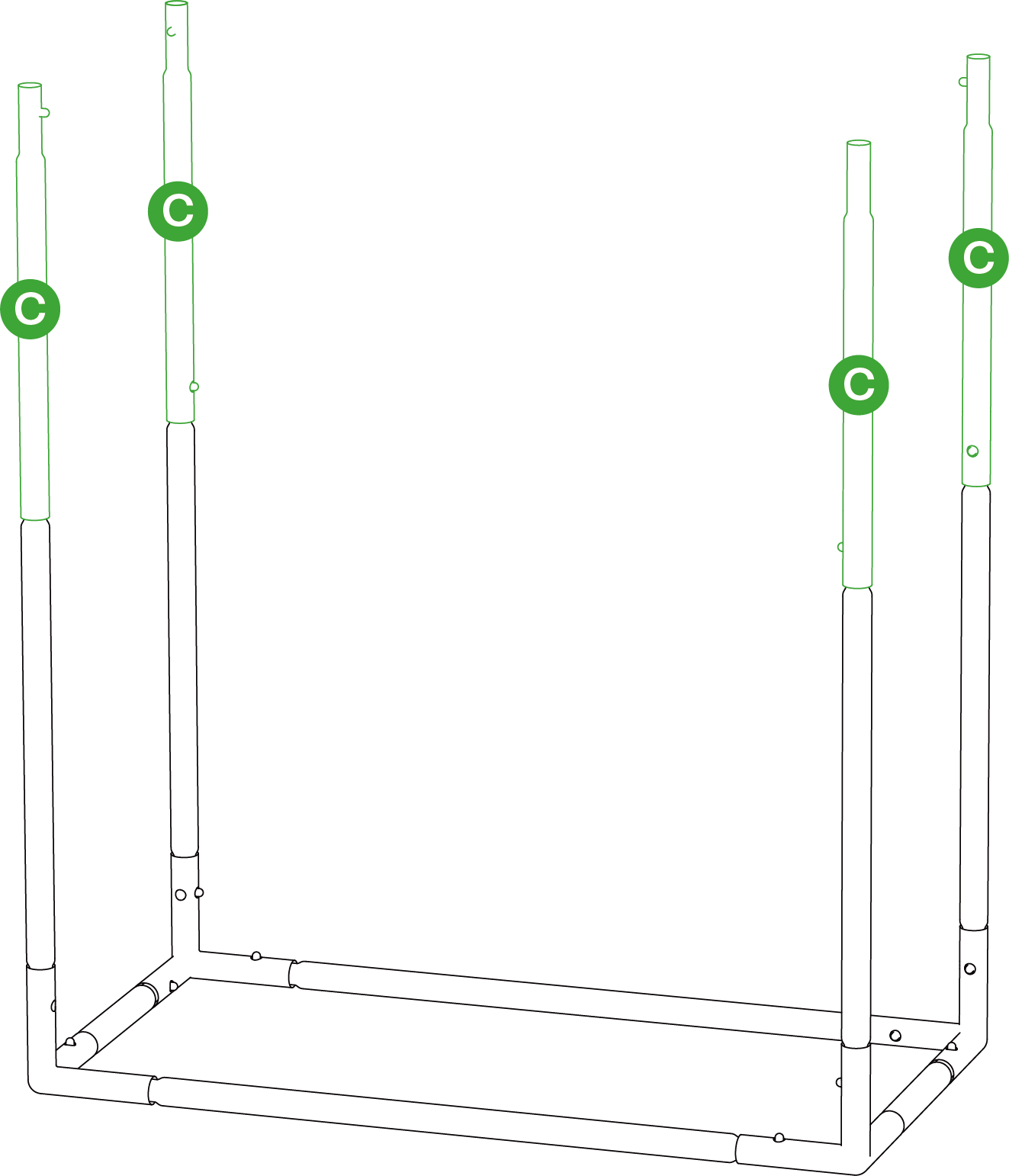

STEP 3

Connect four (C) Poles to the (B) Poles.

f37b82ae426c8a5a706846fe489756f5

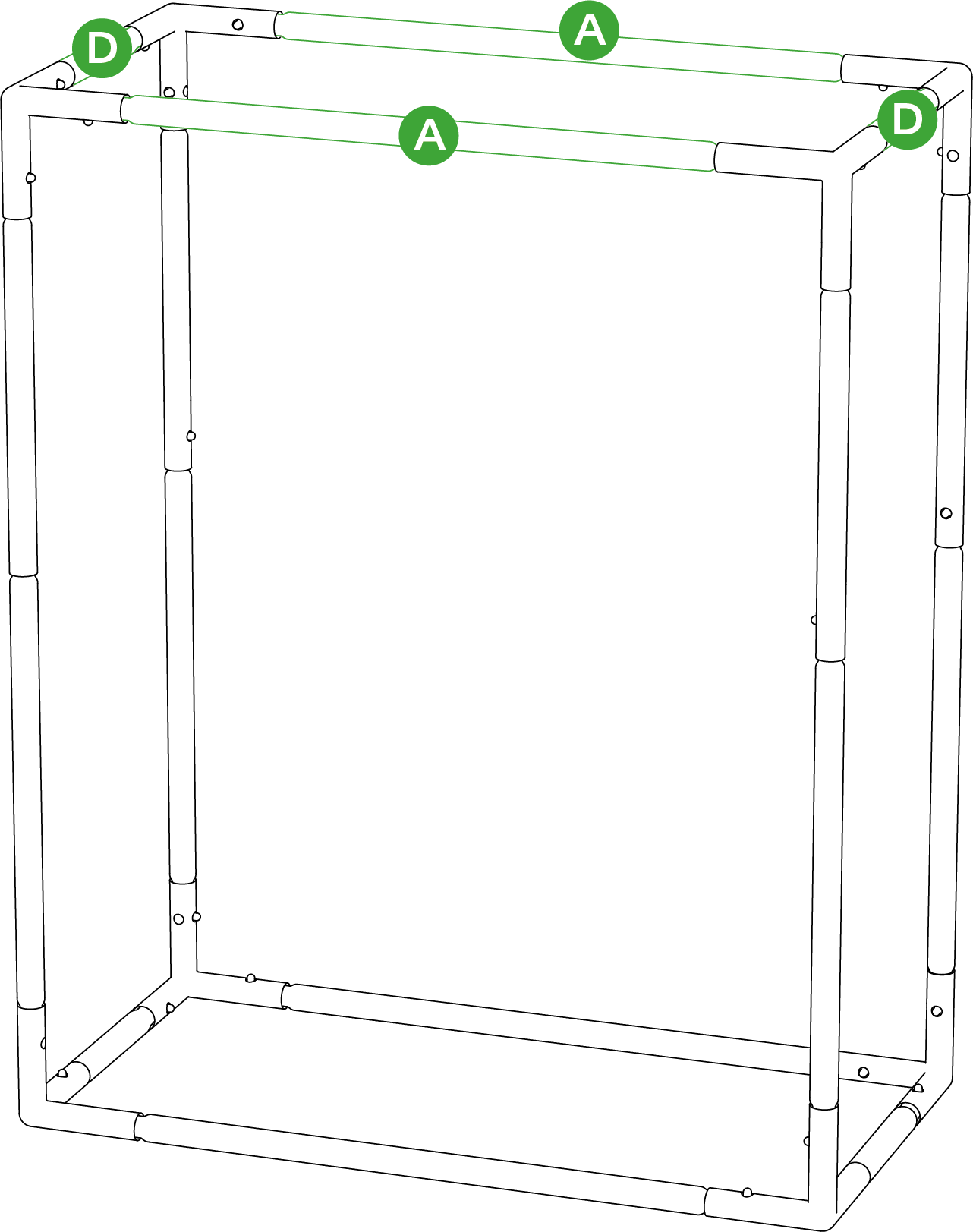

STEP 5

Connect two (A) Poles and two (D) Poles to the Corner Supports (4) to form the top frame of the tent.

d55e48b08cec5ce95b563284e1e10346

STEP 6

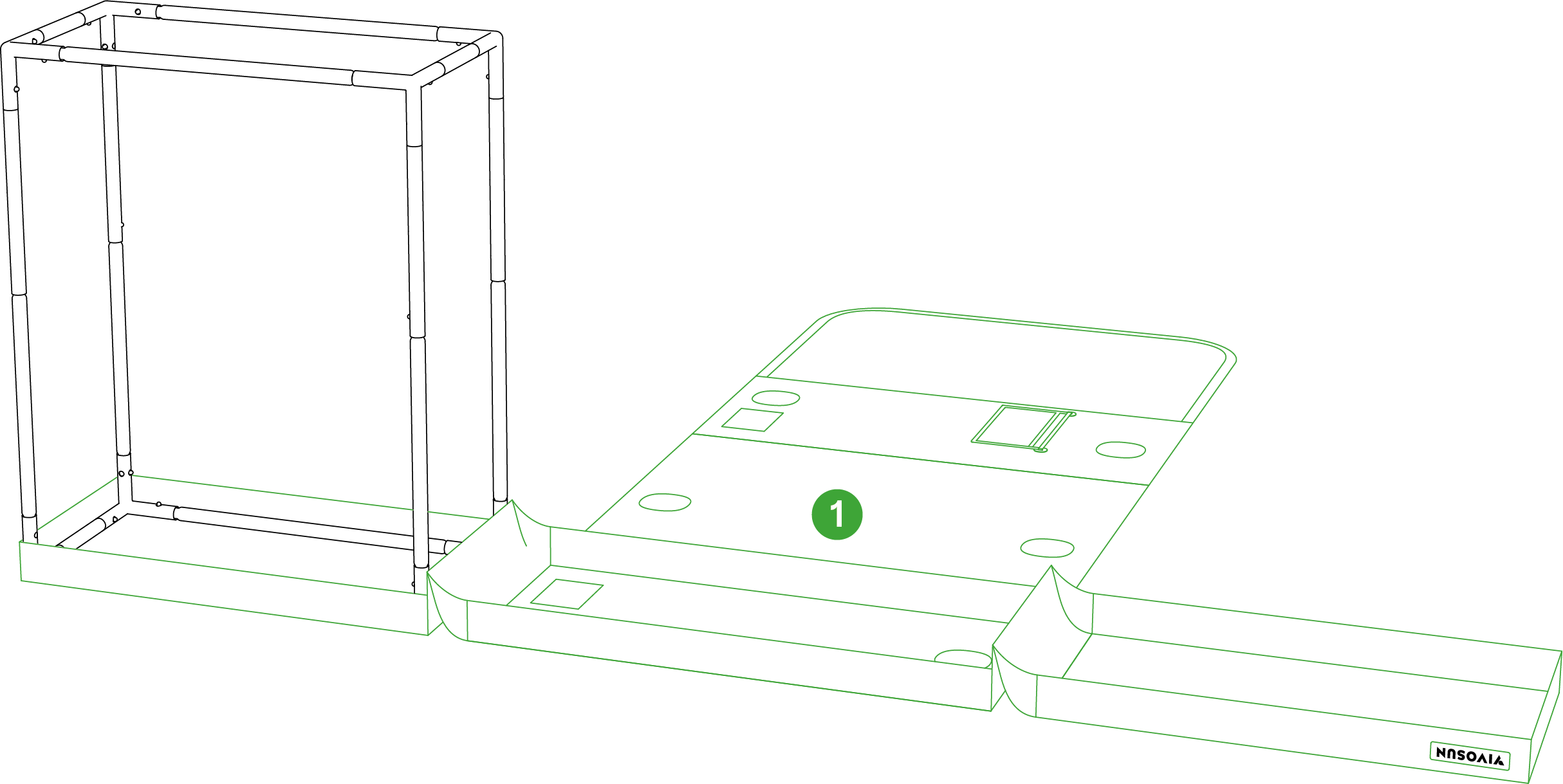

Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .

d68f9f70645861a23f19097eafaca4b8

STEP 7

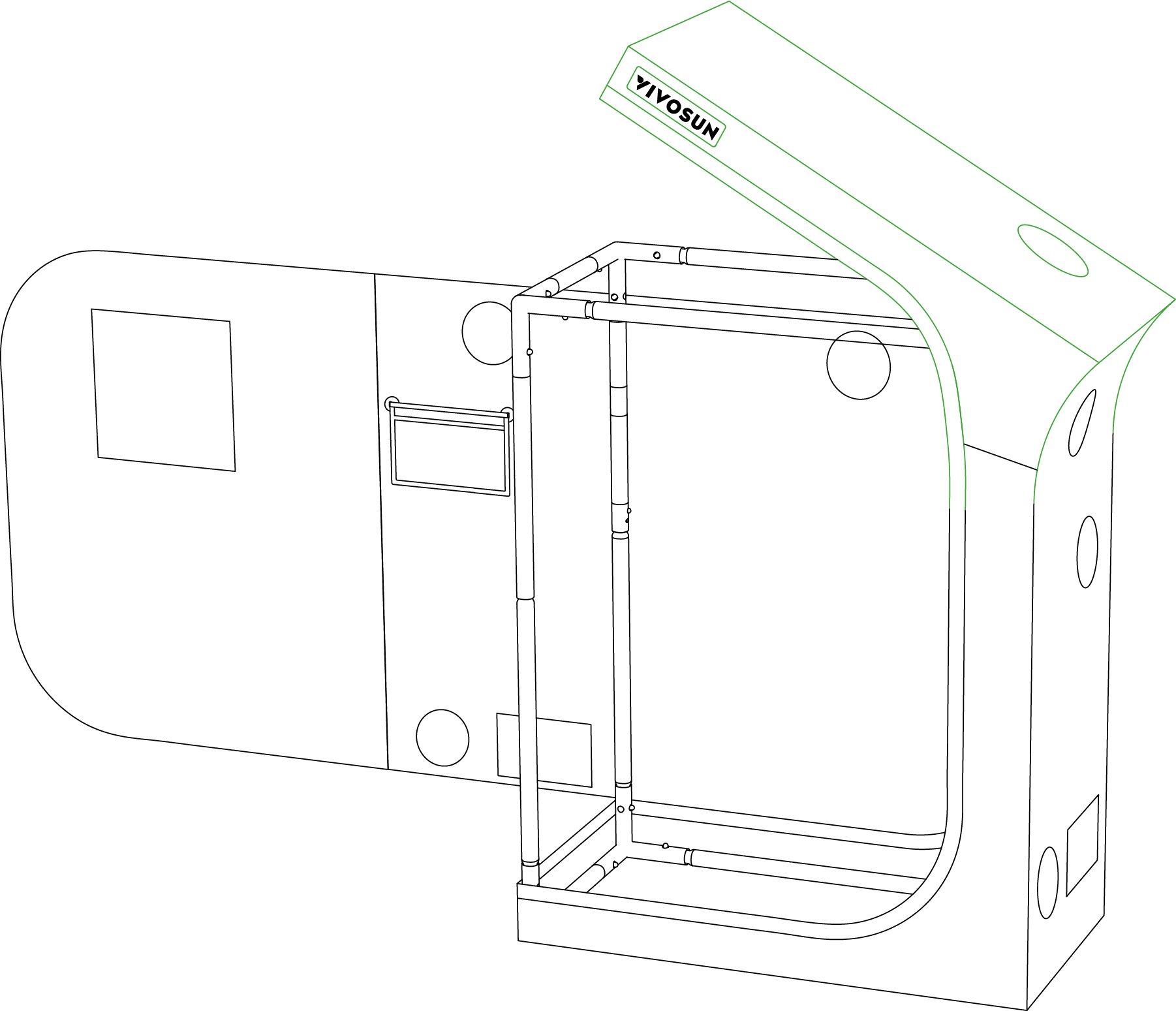

Pull up the tent roof and cover the top of the frame.

fa94b35d11b114eddd0051f18ce59795

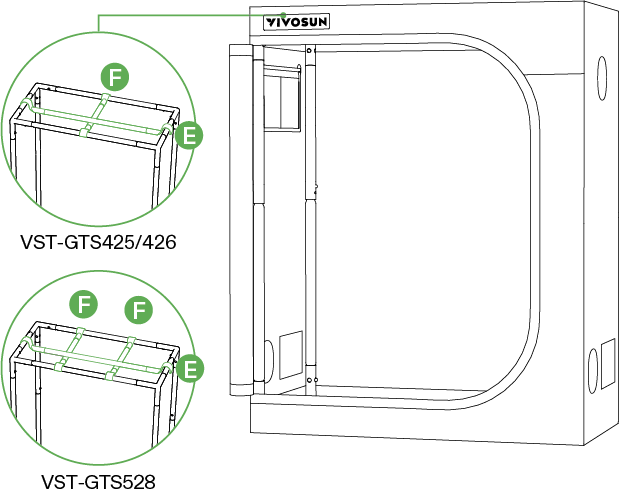

STEP 8

Place the Ceiling Bars (E,F) on the top frame for hanging devices like lights and ventilation. For the VST-GTS528, use two (F) Ceiling Bars and one (E) Ceiling Bar .

95a6598922350894304b6e4304d87cb8

STEP 9

Place the Floor Tray(2) and the Air Vent(5) into the tent.

2dcdc3155494f3719f04b5a1243bf681

STEP 10

Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners.

e87b63ea347af91dfcee156eb83cd69c

VST-GTS848/105

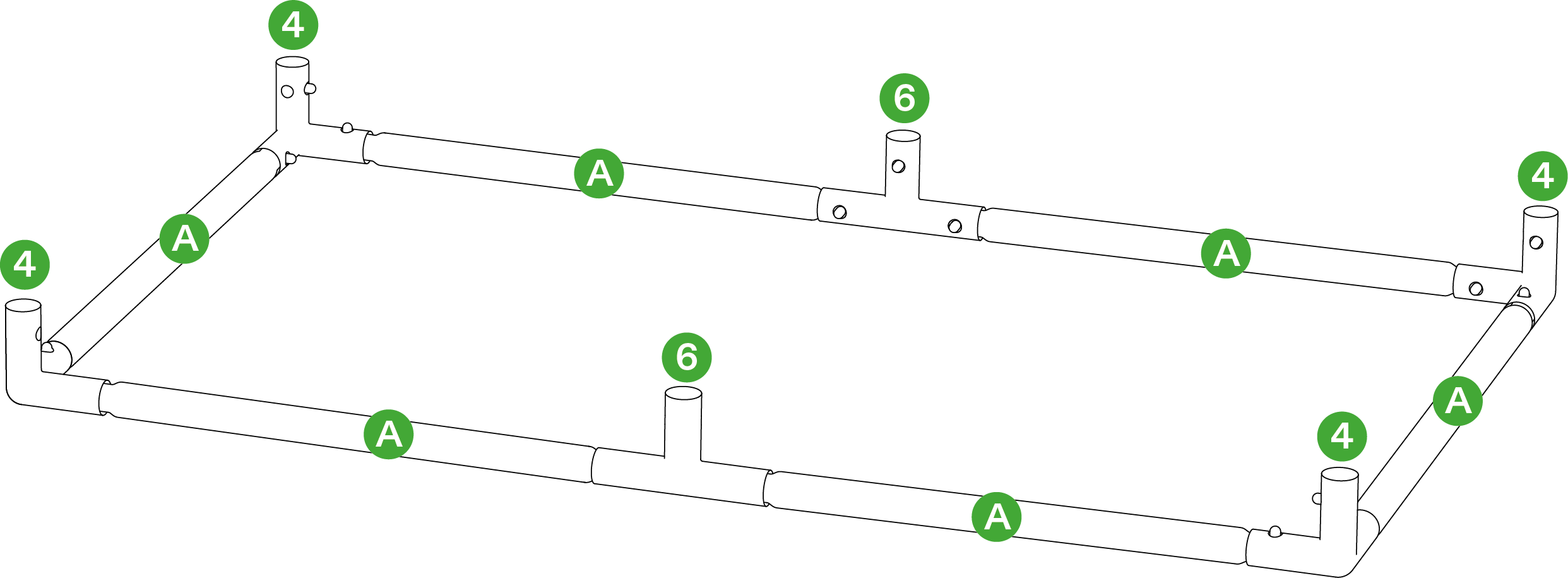

STEP 1

Connect six (A) Poles to four Corner Supports (4) and two Three-way Connectors (6) as shown to form the base frame of the tent.

a9c4f7079e17f0a294c8dd7c5ab3e439

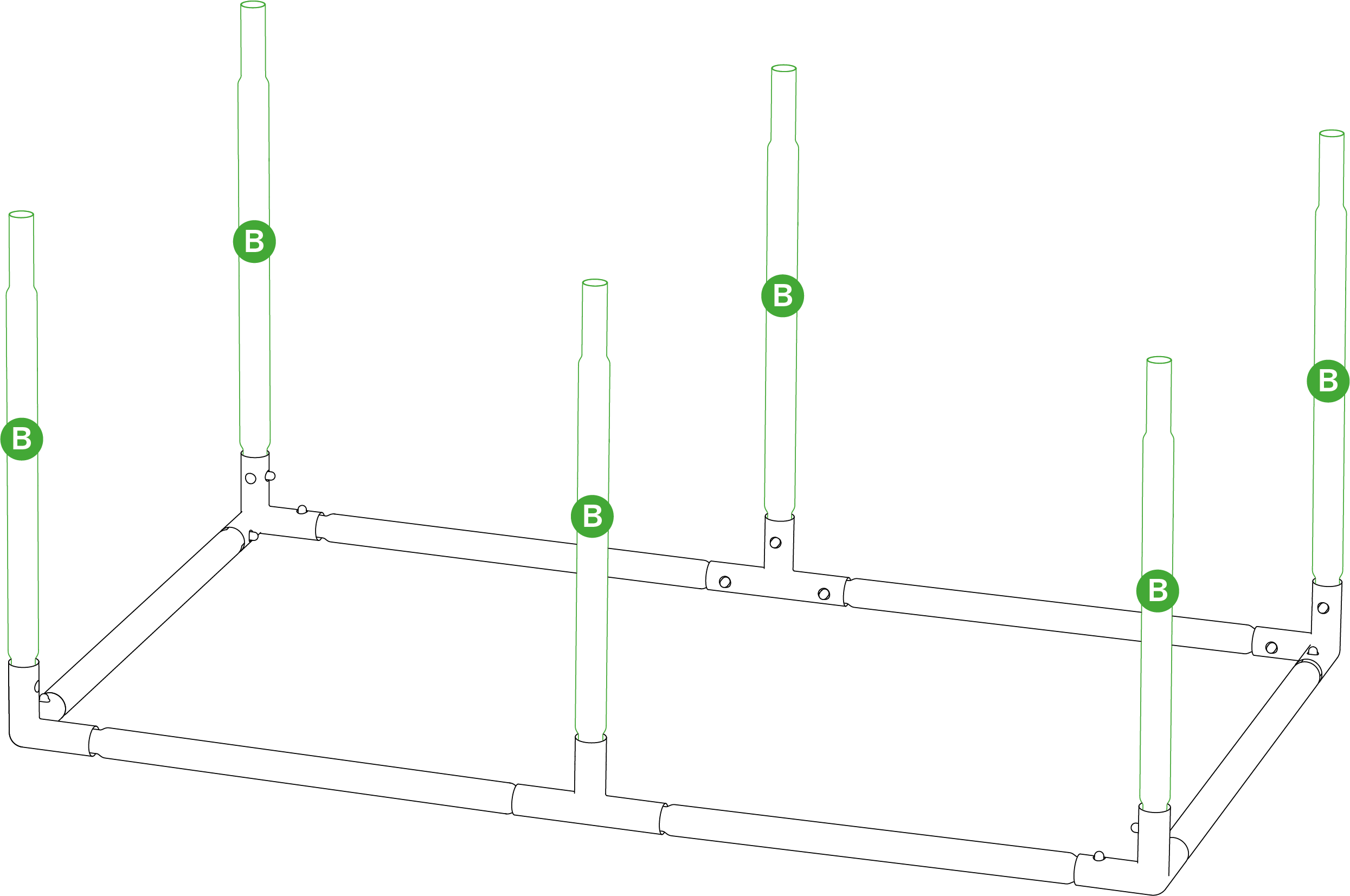

STEP 2

Connect six (B) Poles to the Corner Supports (4) and Three-way Connectors (6) to the tent base.

9d8c6ec10cfc89aa1b994bc3edf6bae1

STEP 3

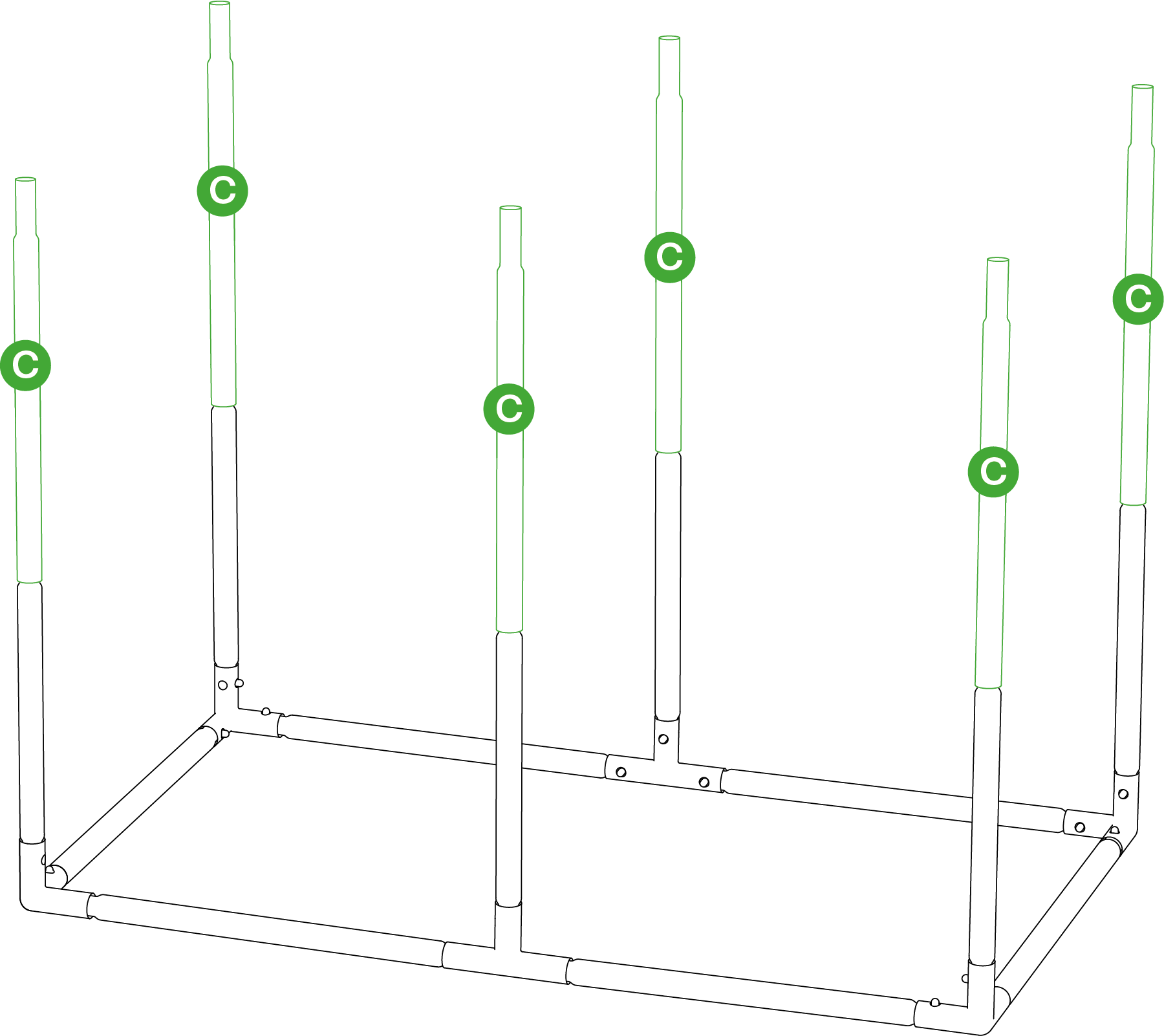

Connect six (C) Poles to the (B) Poles .

92d8d175d3711b179e381cc6e5b306f6

STEP 4

Attach the other four Corner Supports (4) and two Four-way connectors (5) to the (C) Poles as shown.

68c3fd87ad605281dabb4fdb7311ee5c

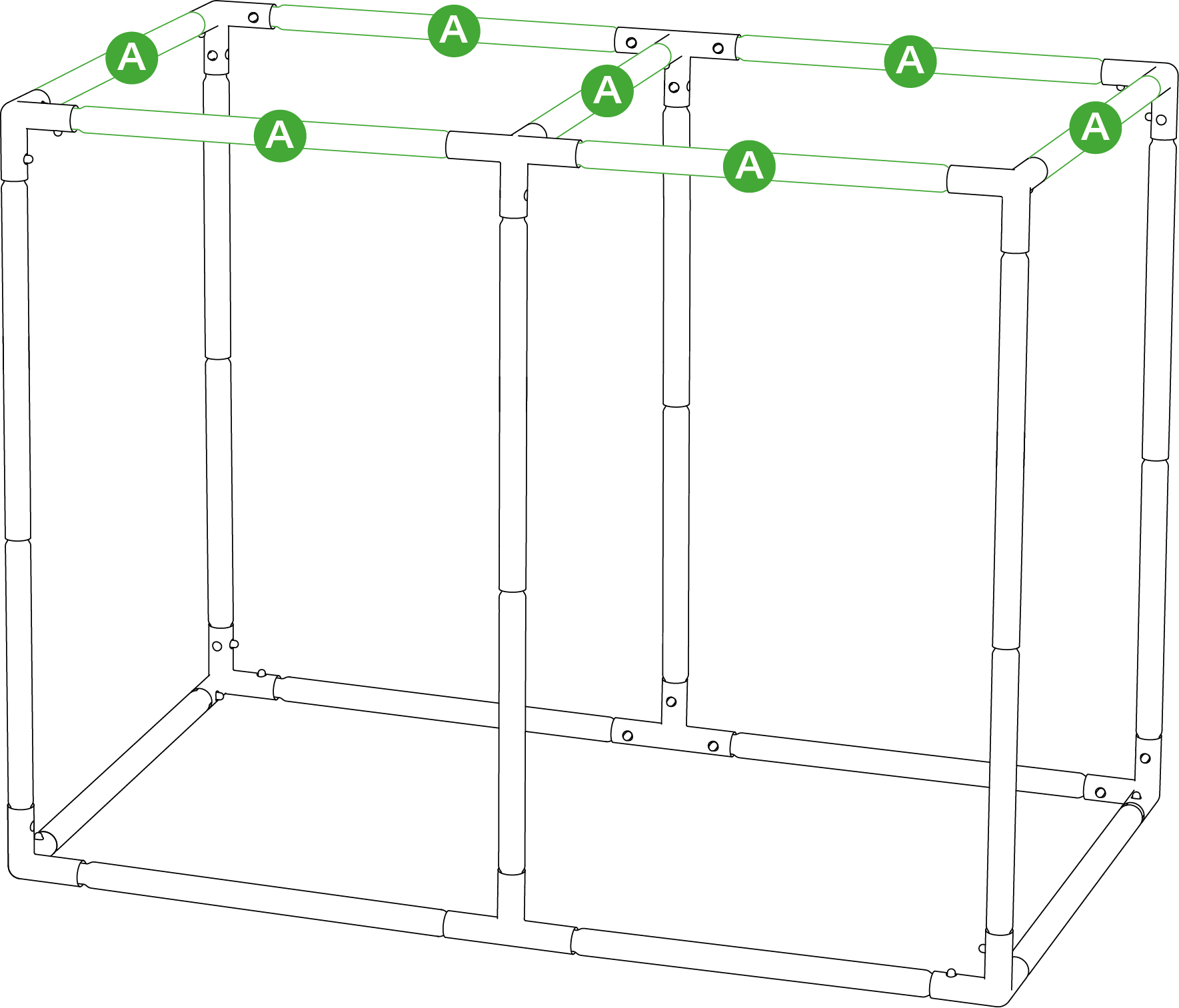

STEP 5

Connect the other seven (A) Poles to the Corner Supports (4) and Four-way connectors (5) to form the top frame of the tent.

13d8418fcda0c0218e1c17ffa11d9344

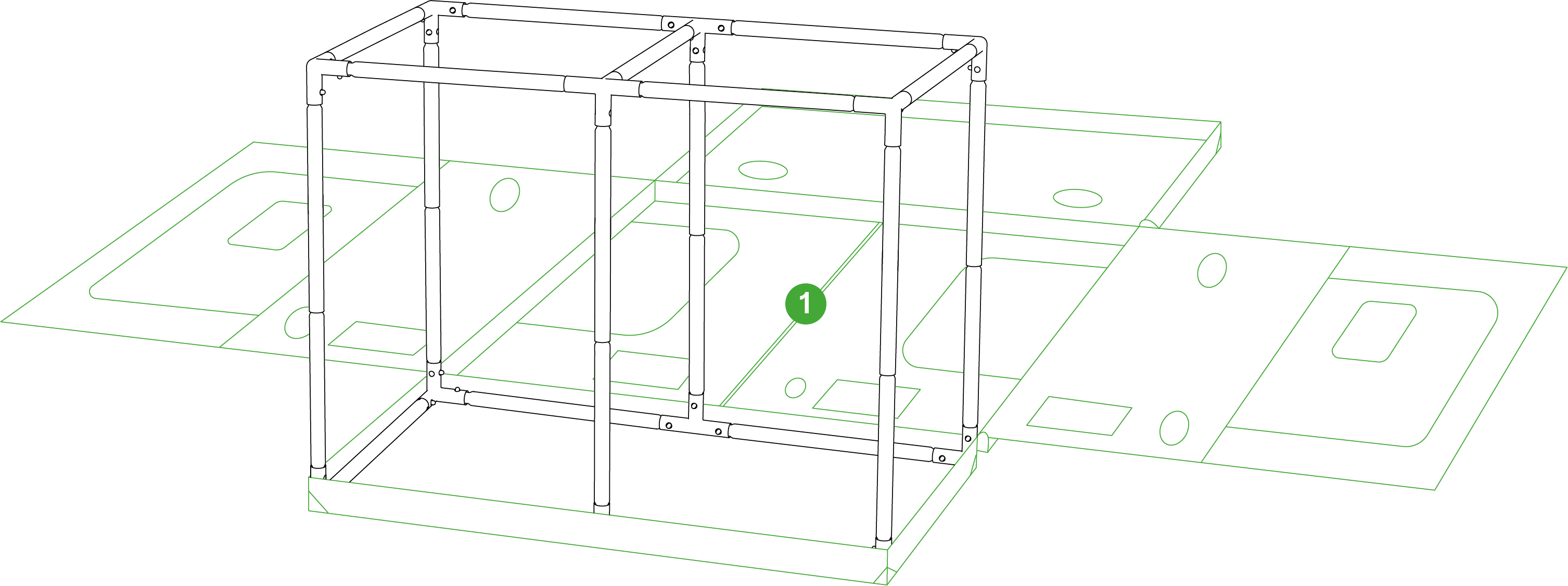

STEP 6

Unzip and unfold the Tent Coat (1) and place the frame base in the bottom section of the Tent Coat.

aa9321c5eaa9e6d662d1640c4a251b88

STEP 7

Pull the tent roof and cover the top of the frame.

96cbae24fbf25a1da220738cb51b57b6

STEP 8

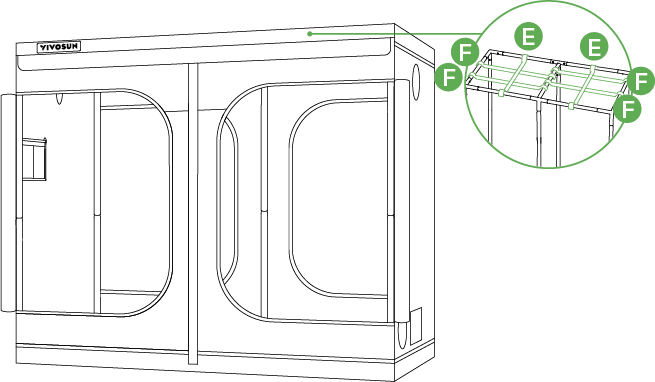

Place the Ceiling Bars (E, F) on the top frame as shown for hanging devices.

cbf5d8eff276aba95ee6fb38907f7ca0

STEP 9

Place the Floor Tray(2) and the Air Vent(5) into the tent.

46f4c13d186bf614e4c94aa2fca708b9

STEP 10

Pull the zippers to close the walls and doors of the tent. Make sure the tent coat fits the frame at the corners.

26e6b00472203b353289ac4c733cb4a6

VST-GTS888/108

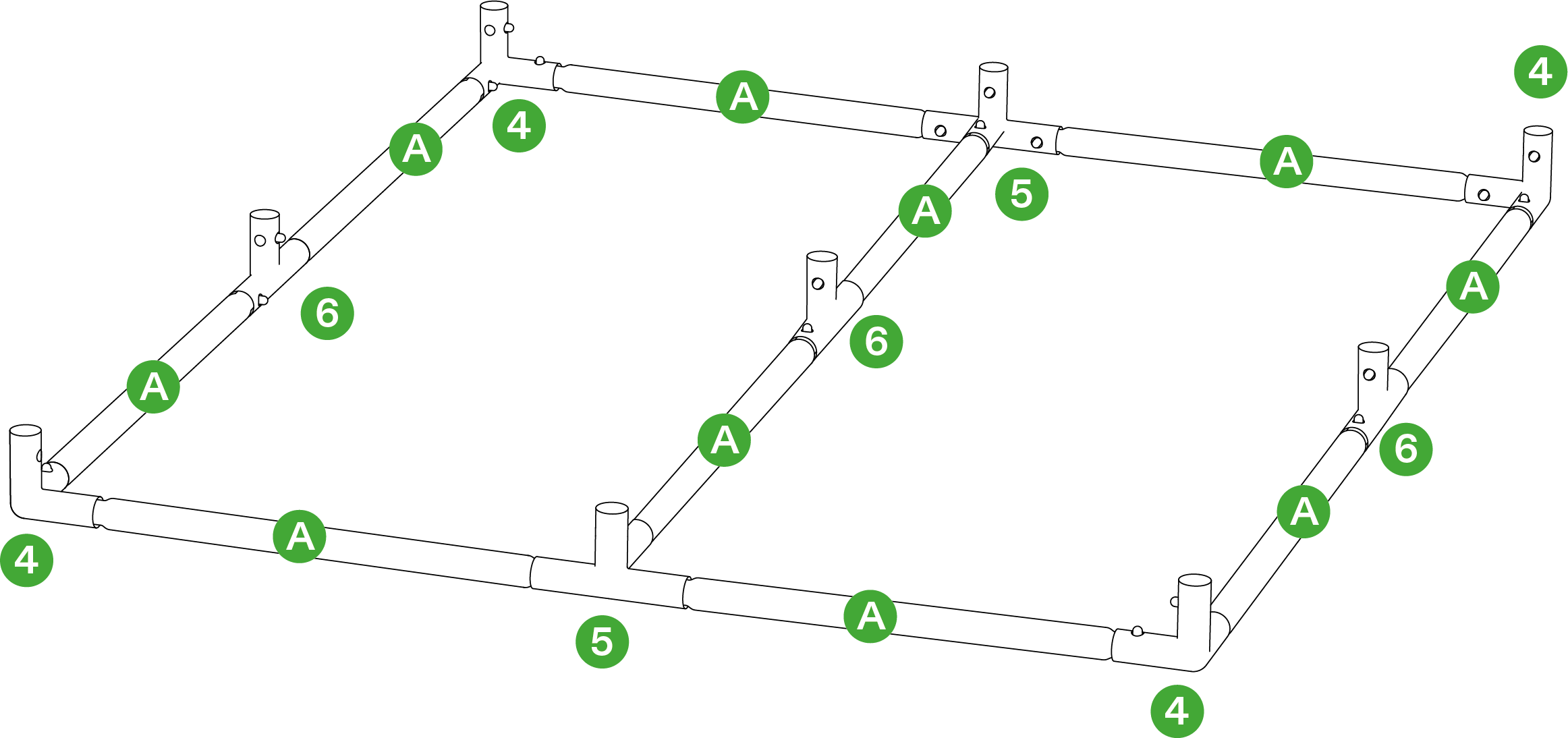

STEP 1

Connect ten (A) Poles to four Corner Supports (4) , two Four-way Connectors (5) and three Three-way Connectors (6) as shown to form the base frame of the tent.

d20cdfdb8522de917f90f98965a9d94f

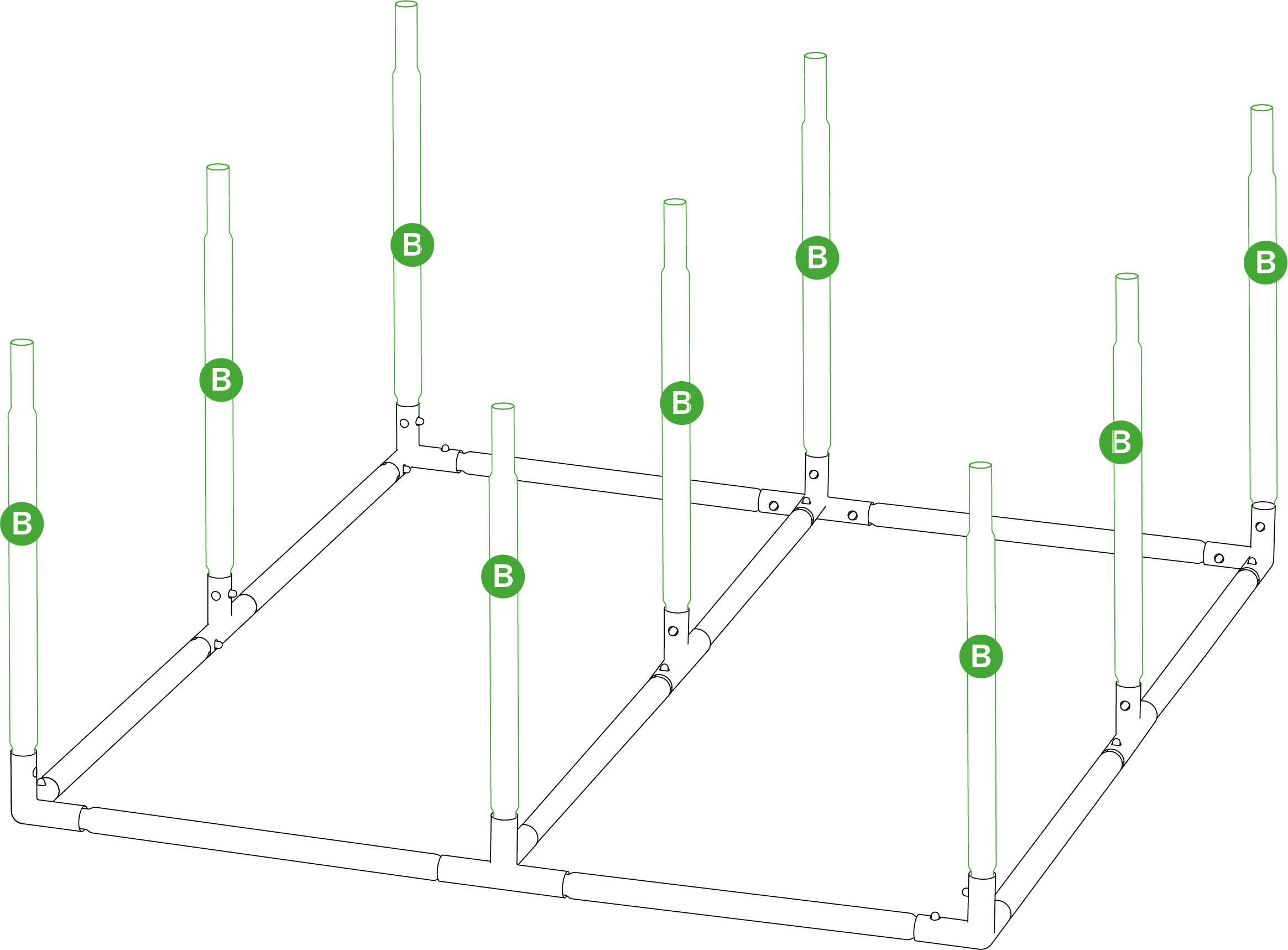

STEP 2

Connect nine (B) Poles to the Corner Supports (4) , Four-way Connectors (5) , and Three-way Connectors (6) to the tent base.

c6d7d9fe188fe08fed8782ec8fe284a3

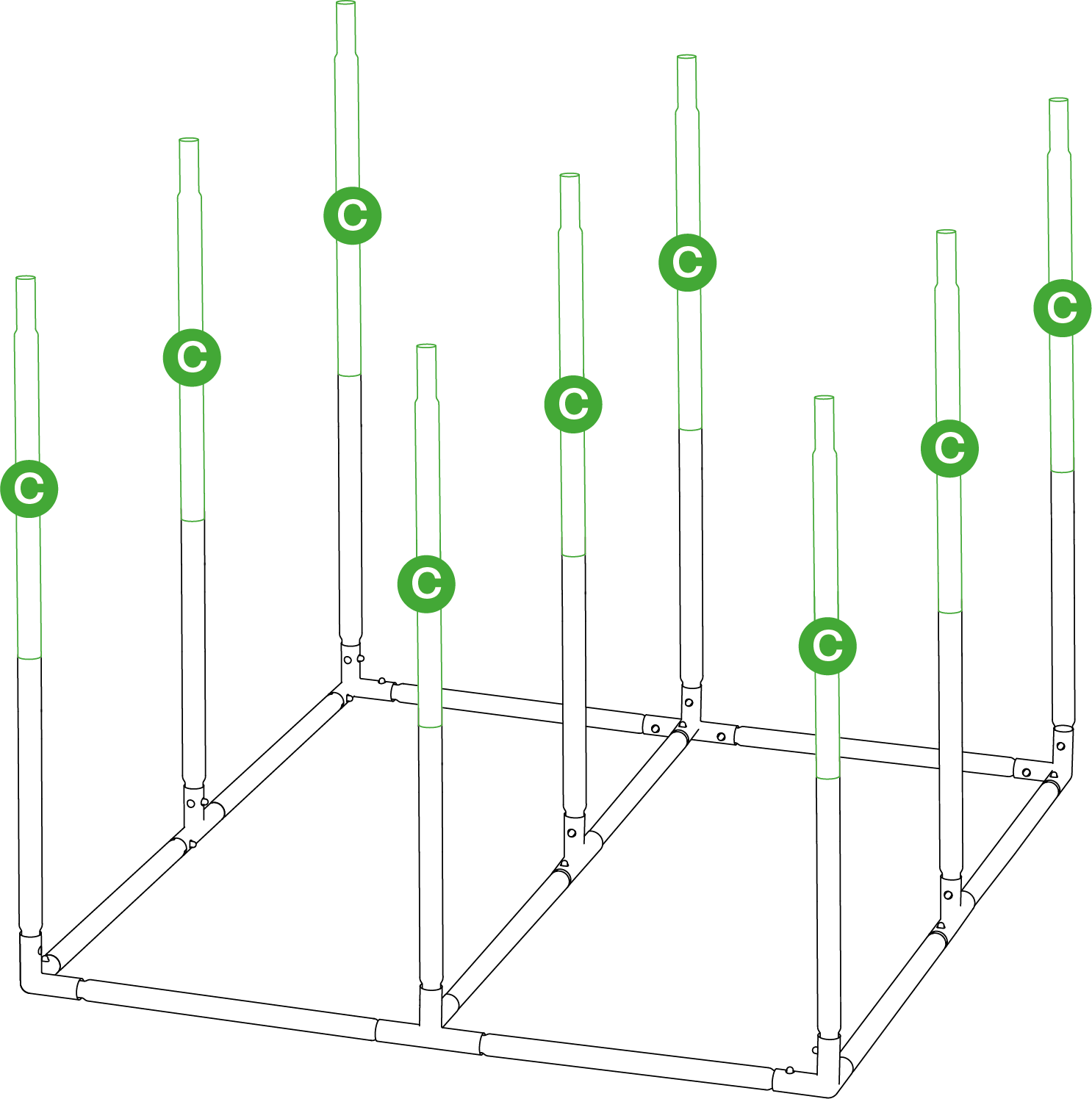

STEP 3

Connect nine (C) Poles to the (B) Poles .

dd7638602fd30eb8efd3cb94dbb07b5f

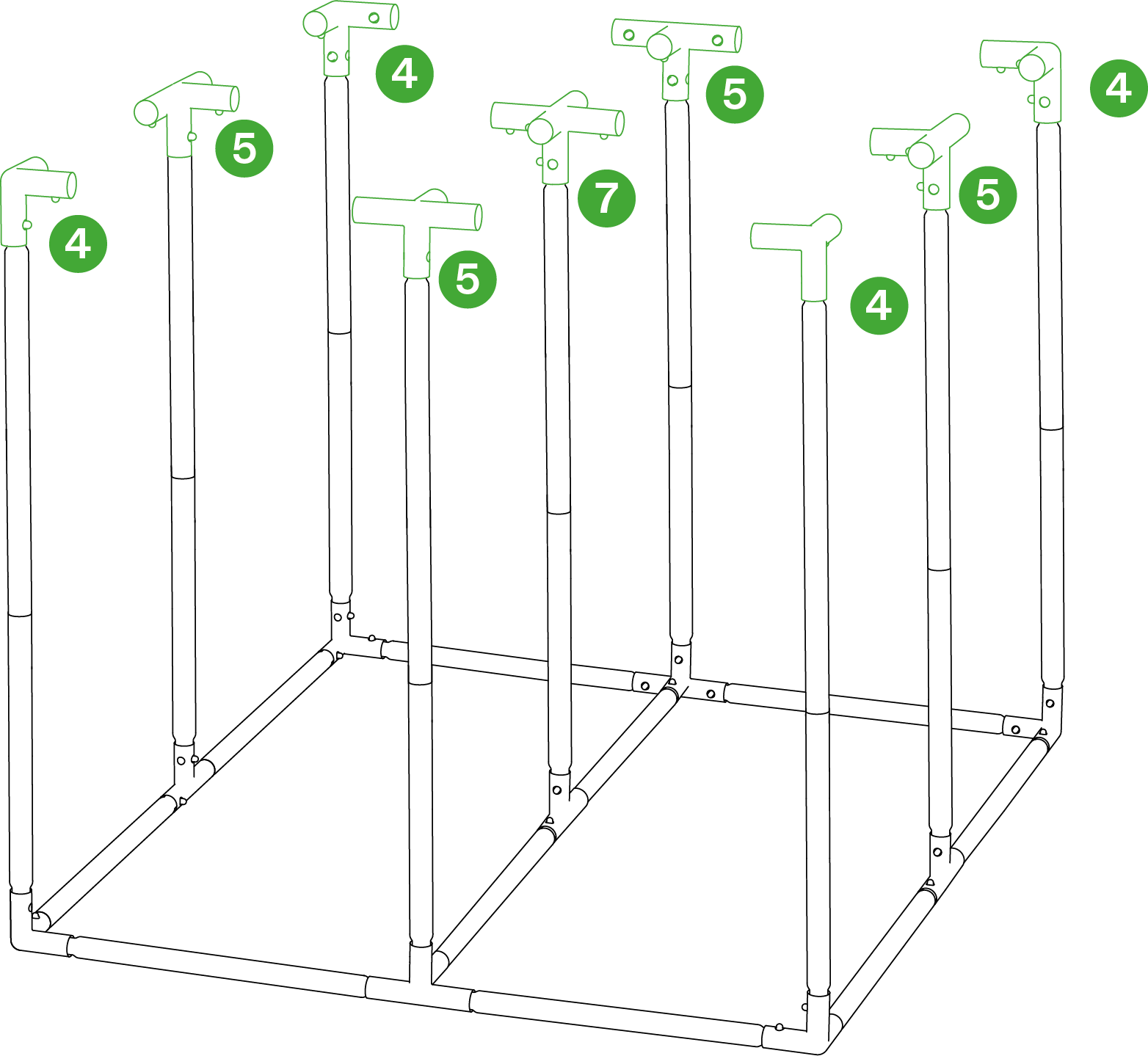

STEP 4

Attach the other four Corner Supports (4) and four Four-way connectors (5) , and one Five-way Connector (7) as shown.

70d6a7041d8f5dba1636ac6db449dbdf

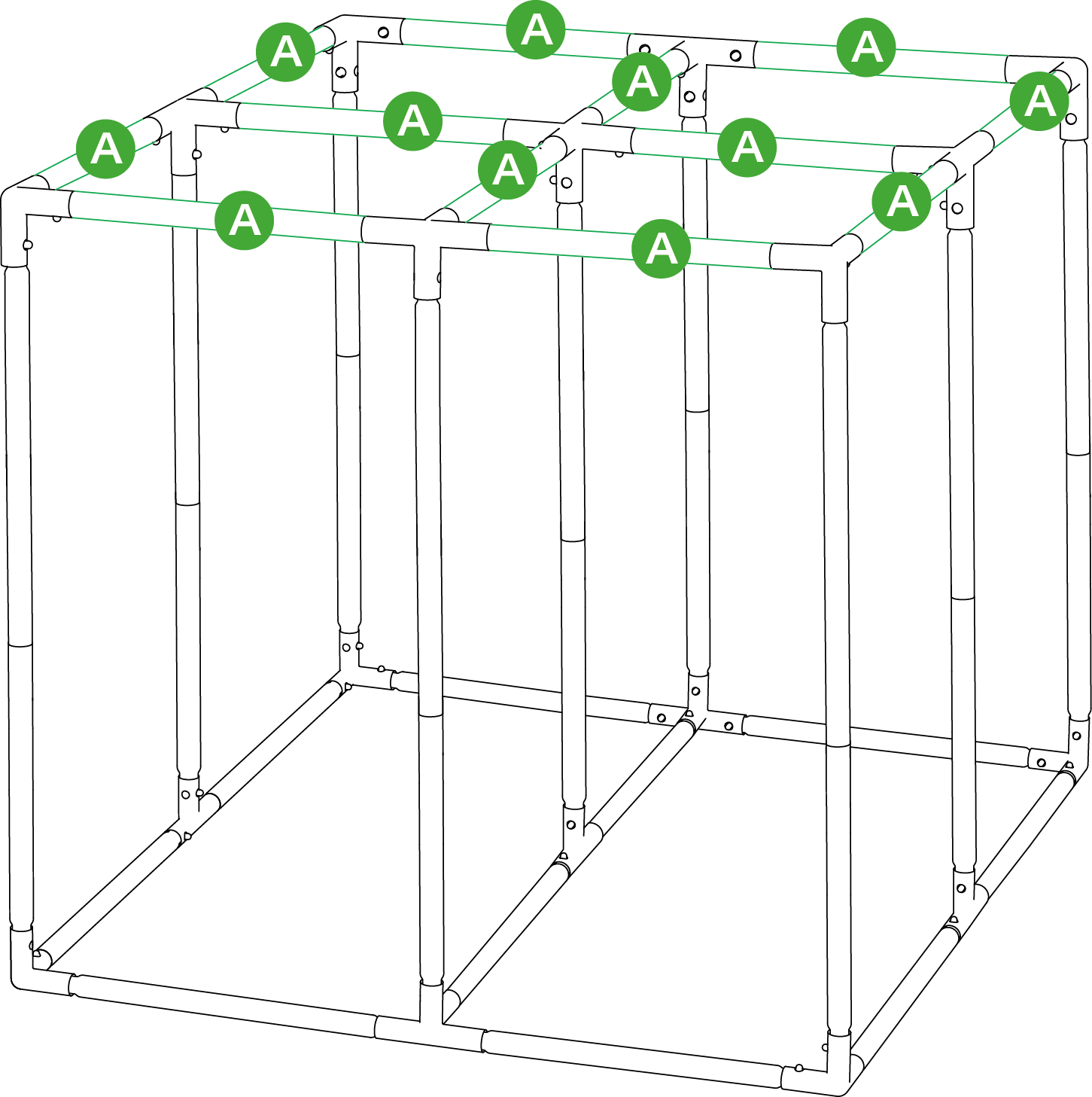

STEP 5

Connect the other twelve (A) Poles to Corner Supports (4) , Four-way Connectors (5) and Five-way Connectors (7) to form the top frame of the tent.

9f32be56c18de3b063134ceae9a59607

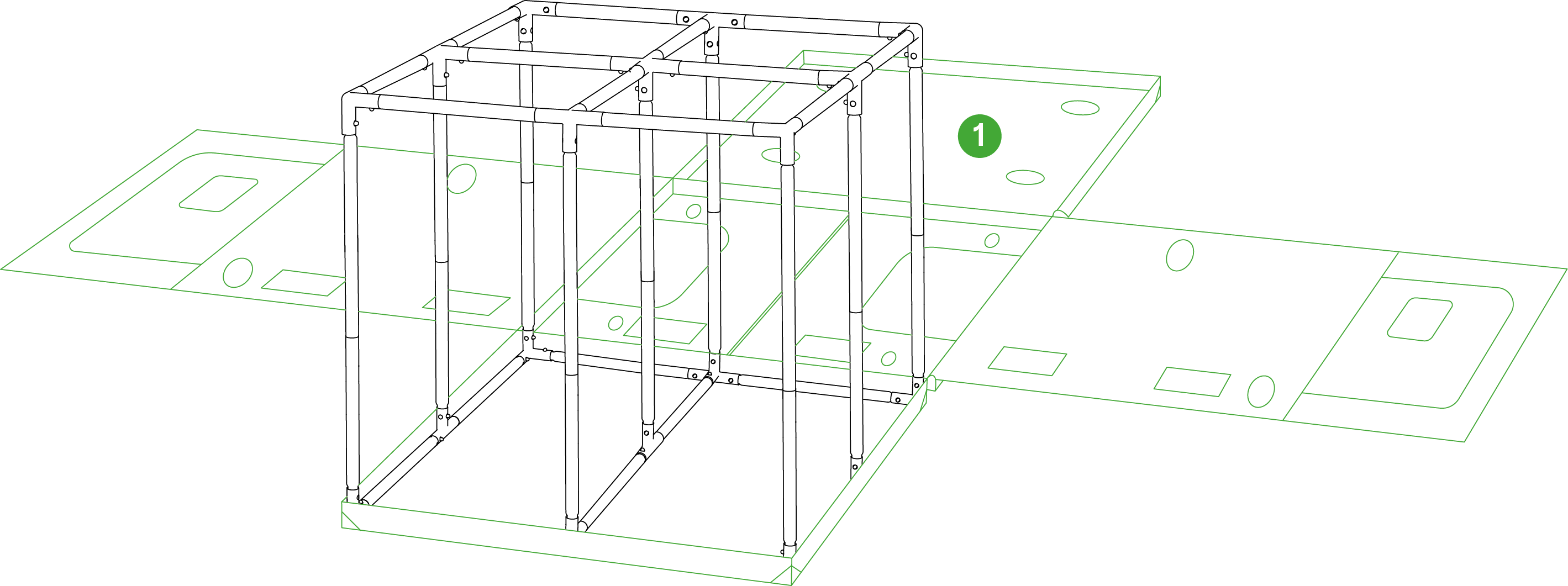

STEP 6

Unzip and unfold the Tent Coat (1) and place the frame base in the bottom section of the Tent Coat.

ad34c6940e5f528d49f262d66e37454c

STEP 7

Pull the tent roof and cover the top of the frame.

d76da223552539d70f62edc76d153671

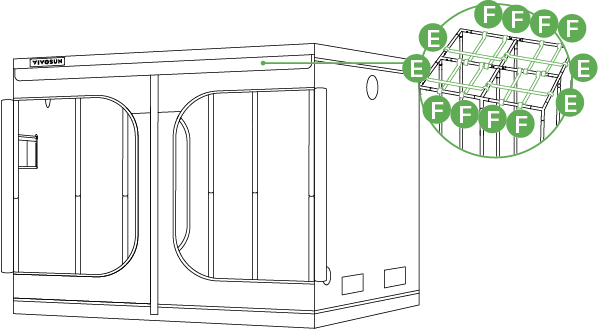

STEP 8

Place the Ceiling Bars (E,F) on the top frame as shown for hanging devices.

d3f8152843cf2fce38f305b4bb381d74

STEP 9

Place the Floor Tray(2) and the Air Vent(5) into the tent.

d8bb53679918c6291c145ae718abc6ce

STEP 10

Pull the zippers to close the walls and doors of the tent.Ensure the tent coat fits the frame snuggly at the corners.

a979021a547fd5d66a3a8b87b2a7456f

Warning

  • Ensure proper ventilation to avoid fire hazards and overheating.

  • Use only certified electrical equipment and prevent overloading circuits to reduce the risk of fire or electric shock.

  • Do not exceed the weight limit to preserve the tent’s structural integrity.

  • Keep the tent out of reach of children to prevent suffocation or injury.

  • Avoid placing the tent near heat sources or open flames to reduce fire risks.

  • Regularly inspect poles and connectors to ensure the tent is securely assembled.

  • Handle metal components with care during assembly to prevent injury from sharp edges.

  • Use Grow Lights as directed, avoiding direct UV exposure to skin and eyes.

  • Clean the removable floor tray regularly to prevent water stagnation and mold growth.

  • Keep ducting and ventilation openings clear to ensure optimal airflow and prevent overheating.

Usage Note:

Before closing the zipper, smooth and align the inner light-proof flap to prevent it from getting caught.

If the zipper becomes stuck, do not force it open or closed, as this may damage the zipper.

Warranty

VIVOSUN offers a 2-year limited warranty on this product purchased directly from us or our authorized dealers, beginning on the original date of purchase.This warranty is provided in addition to, and does not affect, your statutory rights under applicable consumer protection laws in the country where the product was purchased.For the full Warranty Policy, please visit: https://www.vivosun.com/help/warranty-policy

Alternatively, you may contact customer service at support@vivosun.com / +1 888-505-8486.

Contents
Vivosun
We help you grow your best green.
Vivosun
We provide the highest quality.
Vivosun
We relentlessly pursue the future.
Vivosun
We make growing more enjoyable.
Vivosun
We support every grower.

Products

Customer Service

Company

Location

1320 S Baker Ave Suite B, Ontario CA 91761, USA

official@vivosun.com
+1 888-505-8486
Mon–Fri (PST), 00:00–24:00

For bulk orders or wholesale questions, please contact: website@vivosun.com

For Amazon orders or questions, please contact: support@vivosun.com

Trustpilot
©2026 Vivosun All Rights Reserved
